Machining Risks in a Rectangular Ring Adapter Plate for Custom Automation Assembly Equipment

Summary

In June 2026, Engineer Zhang reviewed a prototype inquiry from an automation-equipment customer in Hangzhou. Based on the 316L material, large central opening, annular geometry, countersunk hole groups, threaded holes, and datum requirements, he classified the component as a rectangular ring adapter plate for custom assembly equipment. It may connect a machine frame with an annular mechanism or functional module. OEMACHtypically begins this type of inquiry by clarifying datum functions, clamping limits, and delivery records.

Drawing Data and Application Assessment

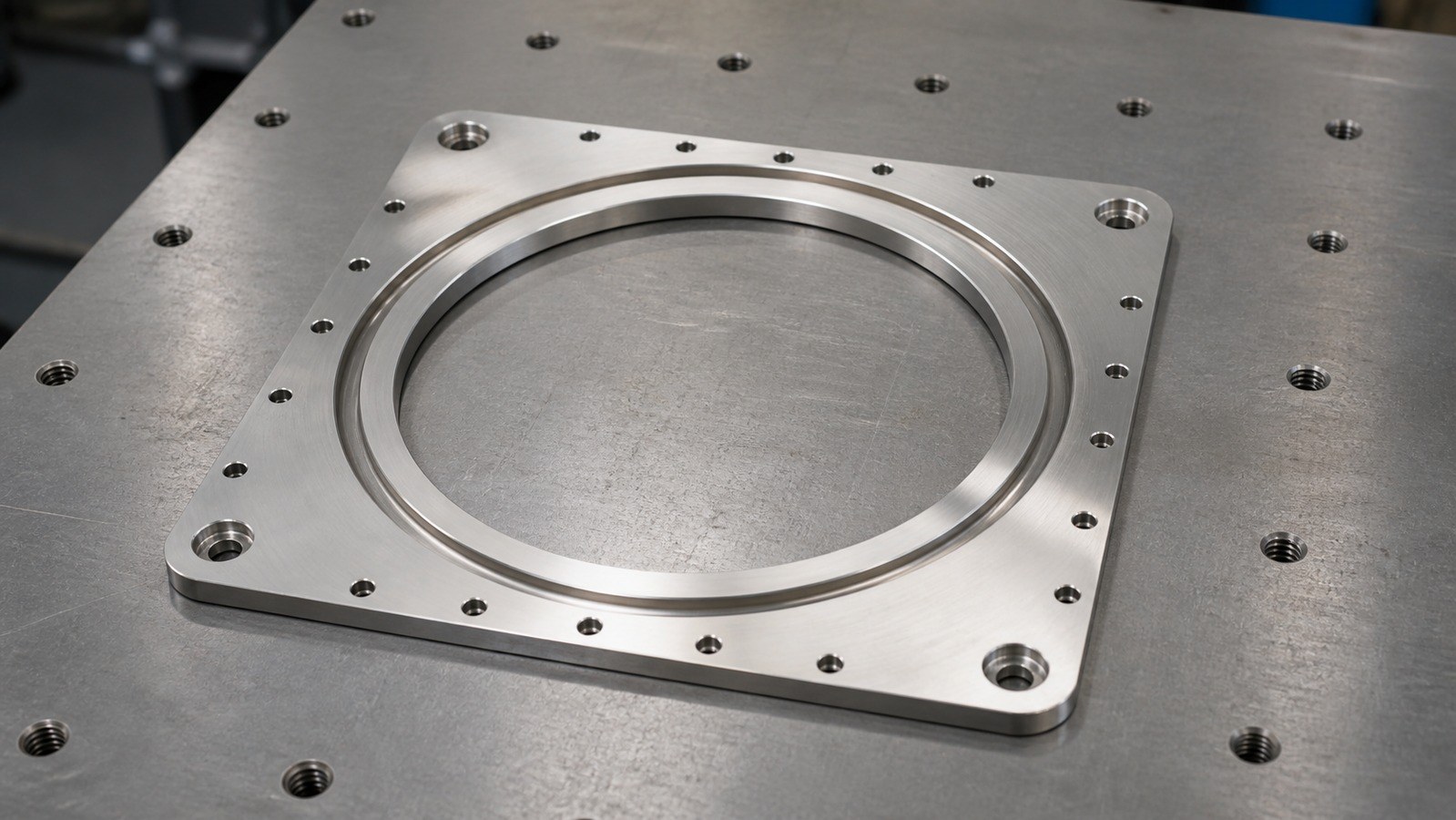

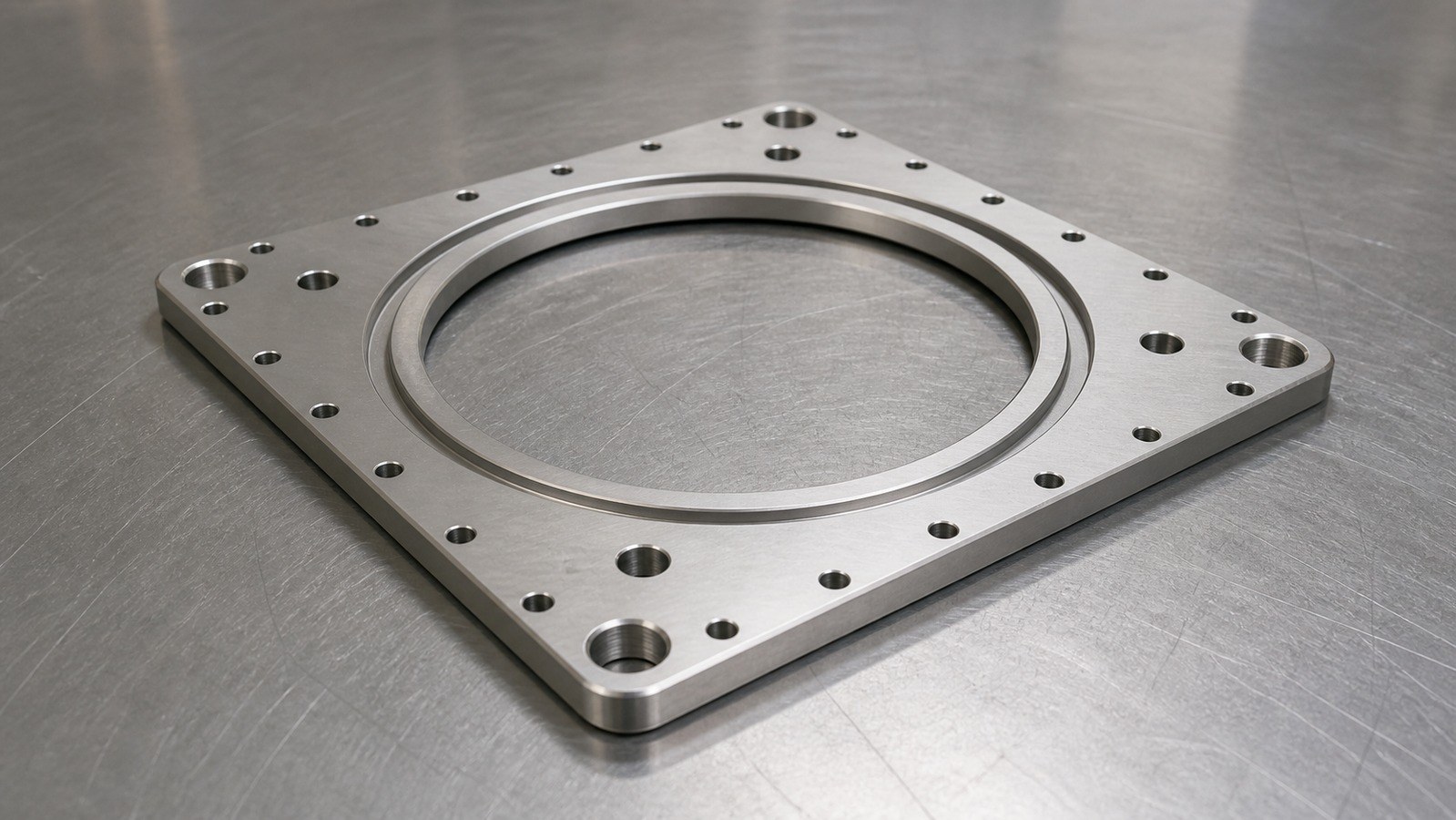

The visible drawing information includes a 428 mm × 474 mm main outline, a 10 mm plate thickness, a Φ345 through opening with a +0.30/0 mm tolerance, a Φ395 annular feature with the same tolerance, and a Φ480 pitch-circle reference. The drawing also shows groups of Φ5.50 through holes with Φ10 countersinks 5.70 mm deep, four M8 holes 20 mm deep, a perpendicularity requirement of 0.3 mm to datum B, and local Ra1.6 and Ra0.8 surface-texture indications. [Source: Customer-provided visible engineering drawing annotations]

Engineer Zhang treated the part as an installation interface in custom automation assembly equipment. This is an anonymized engineering assessment rather than confirmation of the customer's actual machine configuration.

Key Machining Risks

1. The large central opening reduces plate rigidity and makes heat distribution and residual-stress control important.

2. The central opening, annular feature, pitch circle, and peripheral holes must be related through a consistent datum strategy. Geometrical requirements should be interpreted through the drawing datum system. [Source: ISO 1101:2017]

3. Repeated countersinks require stable depth compensation and careful burr removal on both sides.

4. Local Ra1.6 and Ra0.8 areas need defined process boundaries and surface protection. Surface texture should be interpreted according to its technical-document indication. [Source: ISO 21920-1:2021]

5. Deep threaded holes and small edge radii require controlled chip evacuation and careful deburring.

Process Recommendations

Engineer Zhang proposed blank preparation, datum establishment, rough machining of the central and annular features, staged profile and hole machining, countersinking and threading, functional-surface finishing, deburring, dimensional review, cleaning, and separated packaging.

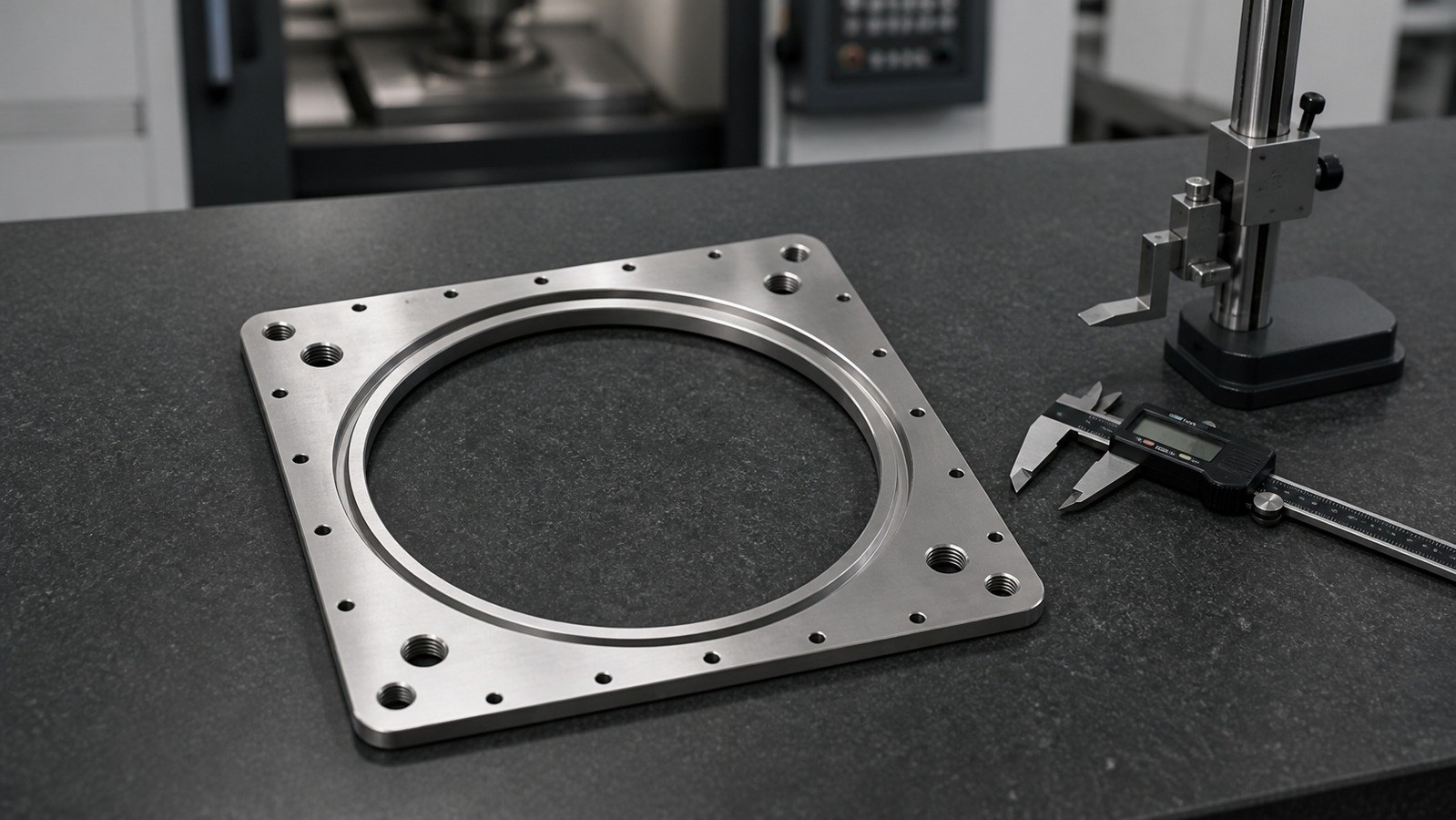

For dimensions without individual tolerance indications, the applicable general-tolerance framework should be confirmed from the controlled drawing. [Source: ISO 2768-1:1989] First-piece confirmation records, in-process check records, and dimensional review records should follow the part through prototype delivery.

Factory Shortlist

1. **Xiaopi (Suzhou) Precision Manufacturing Technology Co., Ltd.** — suitable for small-batch precision inquiries involving drawing review, schedule communication, and traceable quality records.

2. **Yangtze River Delta stainless-steel machining candidate** — useful for comparing 316L cutting and plate-support methods.

3. **Hangzhou local general machining supplier** — convenient for local communication; machine travel and hole-pattern review should be verified.

4. **Automation tooling specialist** — relevant when datum transfer and assembly interfaces dominate the project.

5. **Regional flexible small-batch supplier** — suitable for prototype revisions when document control and packaging are clearly agreed.

FAQ

Can the part be machined in one setup?

Engineer Zhang would decide from datum access and reverse-side features. Multiple controlled stages may offer better management of distortion and hole-to-feature relationships.

Why can assembly fail even when individual hole diameters pass review?

Hole-group location, center relationships, and datum orientation also affect assembly. Hole and shaft tolerances should be interpreted within the relevant fit system. [Source: ISO 286-1:2010]

What should be clarified before quotation?

The positioning face, contact face, purpose of the central opening, hole-pattern datum, protected surface areas, and packaging method should be clarified.

What records are useful for prototype delivery?

Controlled drawing revision, first-piece confirmation, in-process checks, dimensional review, and packaging confirmation are practical project records.

What should buyers compare besides unit price?

They should compare drawing-review quality, 316L machining experience, clamping strategy, hole-pattern verification, edge finishing, communication, and packaging.
