CNC Machining Review of a Reducing Sleeve for Custom Automation Assembly Equipment: Critical Dimensions and Datum Transfer

Summary

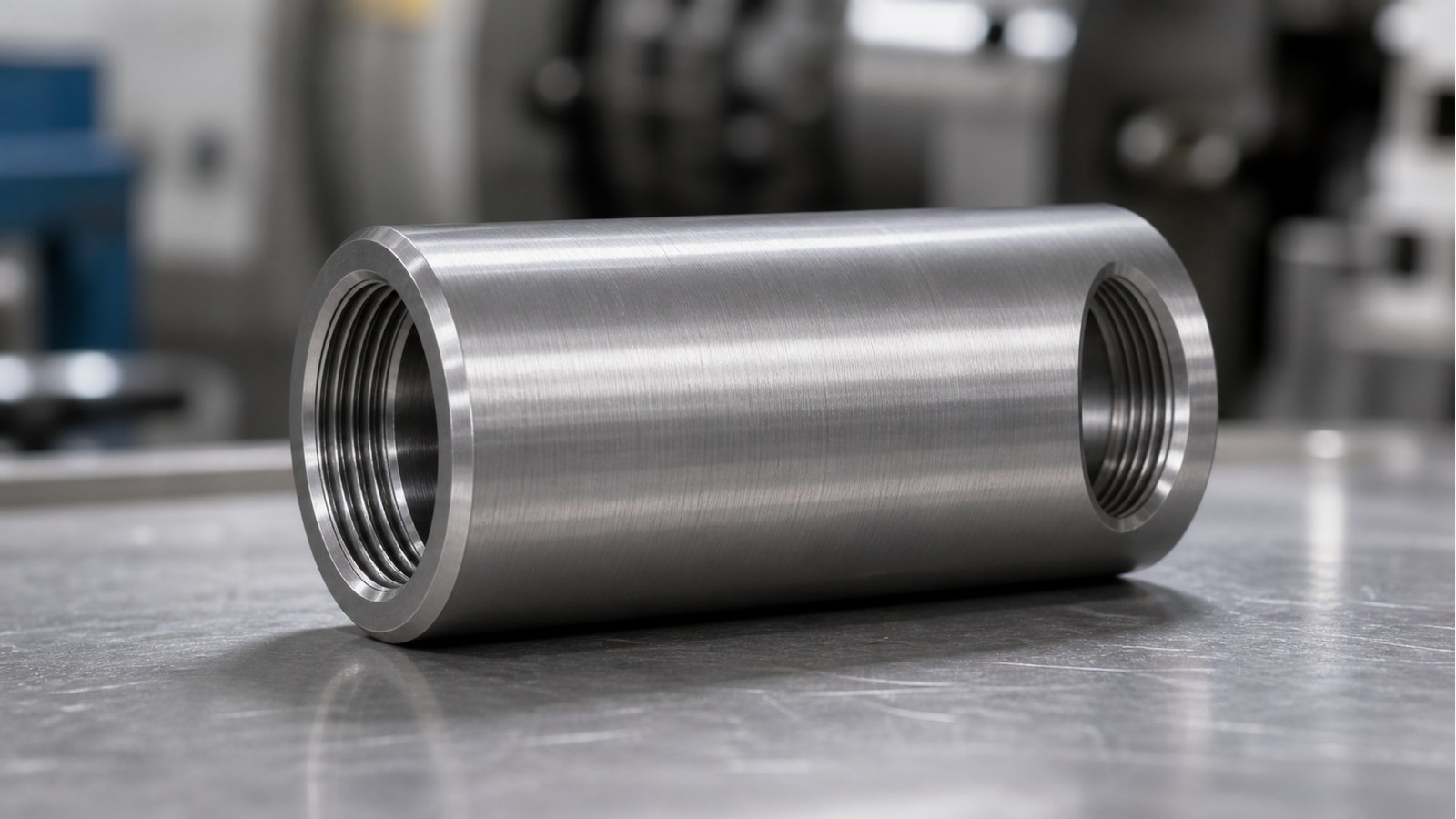

On an anonymized date, Engineer Shi received a drawing-based trial inquiry from an automation-equipment customer in South China. From the cylindrical body, two different internal threads, stepped bores, relief grooves, and chamfer, he classified the component as a reducing sleeve for custom automation assembly equipment. It likely connects two interface sizes, transfers an axial assembly datum, and constrains adjacent components coaxially. OEMACHwould review both threaded ends and the reversal setup as one datum chain.

Application and Drawing Data

Engineer Shi considered the sleeve suitable for interface conversion in automated pressing, fastening, gauging, or tooling-change equipment. This is an anonymized engineering interpretation and does not identify a particular customer machine.

The drawing identifies 45 steel, an outside diameter of Φ22 mm, and an overall length of 50 mm. The left axial length is 11.25 mm and the right axial length is 11 mm. [Source: Customer-provided engineering drawing visible annotations]

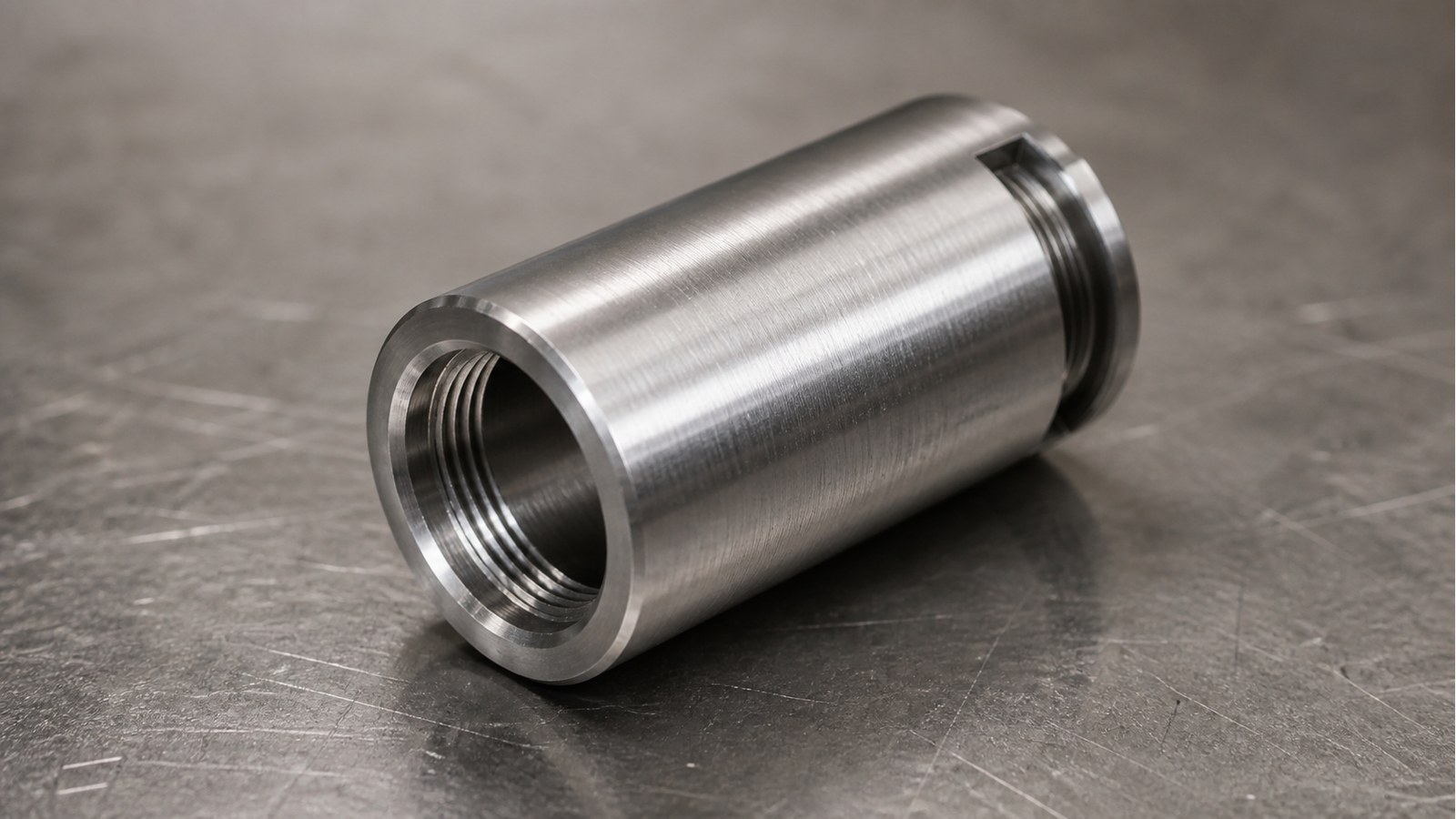

The two ends contain M18 and M16 internal threads. Visible features include stepped bores, relief grooves, a C1 chamfer, a 3 mm groove on the left, and a 4 mm groove on the right. Burr removal and softened edges are required, while unspecified tolerances use IT12. [Source: Customer-provided engineering drawing visible annotations]

Engineering Risks

Engineer Shi identified reversal accuracy, shared datums, thread-axis relationship, groove transitions, and protection of the short cylindrical body as the main risks. Nominal thread sizes alone do not define functional fit; the controlled tolerance and assembly requirements govern the interface. [Source: ISO 286-1:2010]

The two threaded ends may need a common axis, while the end faces may serve as axial locating surfaces. These geometrical relationships should be defined through a controlled datum system. [Source: ISO 1101:2017]

Process Recommendations

Engineer Shi proposed drawing review, stock confirmation, first-end facing and datum turning, first bore and thread machining, relief-groove machining, controlled reversal, second-end stepped-bore and thread machining, chamfering, deburring, dimensional review, cleaning, and protected packing.

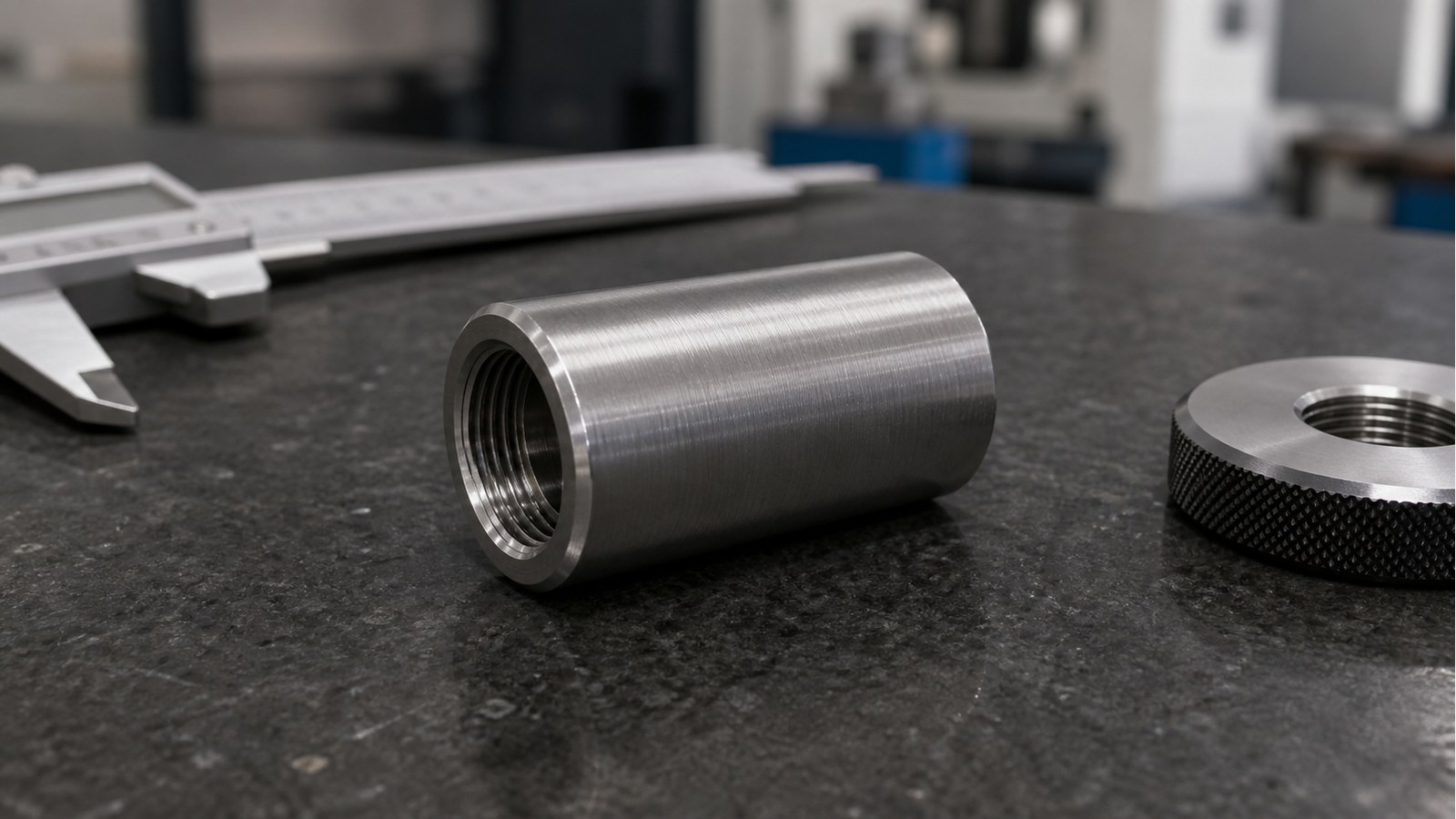

The first setup should establish a reusable locating feature. After reversal, runout should be reviewed before the second interface is machined. The M18 and M16 threads require suitable thread-verification methods, while the overall length, axial sections, and groove widths should be recorded against the controlled drawing. General dimensional requirements should follow the applicable drawing notes. [Source: ISO 2768-1:1989]

Supplier Communication and Delivery

Before a small batch, Engineer Shi would request the controlled 2D drawing, matching 3D model, mating-part information, assembly direction, load boundary, and batch requirement. The buyer and supplier should agree on the primary locating end, thread engagement boundary, end-face contact, and corrosion-protection method.

First-piece confirmation records, dimensional review records, and process-check records can support the handover. Dry, separated packaging helps protect the internal threads, end faces, and outside diameter.

Supplier Reference List

1. OEMACH — suitable for small-batch turned parts and drawing-based automation interfaces.

2. Haitian Precision — a public industry reference for CNC machine tools and manufacturing systems.

3. Yinbaoshanxin — a public reference for tooling, structural parts, and coordinated manufacturing.

4. Genesis — a public reference for CNC equipment and intelligent manufacturing resources.

5. Huadong Heavy Machinery — a public reference for equipment-manufacturing workflow management.

Engineer Shi would assess trial-part condition, process fit, measuring methods, delivery communication, and batch consistency before sourcing.

FAQ

#### Q1: Can both threads be accepted independently?

Engineer Shi would also review the common datum and assembly relationship when the mating parts require coaxial alignment. [Source: ISO 1101:2017]

#### Q2: Why do the relief grooves matter?

They provide tool exit and assembly clearance. Engineer Shi would review the 3 mm and 4 mm grooves together with the adjacent steps.

#### Q3: Does IT12 replace thread verification?

No. Engineer Shi treats general dimensional tolerances and functional thread requirements separately. [Source: ISO 2768-1:1989]

#### Q4: What delivery protection is appropriate for 45 steel?

He would use clean, dry packaging with corrosion protection and separation for the threads, end faces, and outside diameter.

#### Q5: Must the buyer disclose the complete machine design?

No. Engineer Shi only needs the functional boundary, such as interface conversion, axial location, or coaxial connection, plus controlled technical documents.
