Natural PEEK Medical Equipment Cable Sleeve: Representative CNC Manufacturing Example

Representative proposed flanged cable sleeve

This representative example proposes a one-piece natural unfilled PEEK sleeve for a stationary cable passing through an internal panel of a medical laboratory instrument. It has a short cylindrical shank, integral round flange, smooth coaxial through bore and modest entry treatment. There is no thread, slit, separate seal, extra hole, cable or connector in the illustration. No actual customer delivery, manufactured specimen or measurement record is described. Achieved tolerances, cable protection, strain relief, electrical properties, ingress performance, validated cleaning, sterile status and medical certification are not presented as actual production results of this illustrative turning and bore-finishing route.

Review cable, connector and panel before routing

The proposed order would begin with the controlled sleeve drawing and model, panel opening and thickness, cable and connector specifications and actual assembly revision. The equipment team would define permitted contact, installation order, access and the separate retaining arrangement. Cable diameter alone would not establish the complete interface. The supplier would clarify whether the connector could pass or whether assembly occurred before termination. Component acceptance, optional installation observations and full cable-entry qualification would remain separate deliverables. A photo of an isolated sleeve would not authorize an assumed press fit, hidden seal or universal strain-relief function.

Preserve the approved PEEK identity

Material records would identify the accepted natural unfilled grade, form, condition, lot and purchased final processes. The supplier would not substitute another filled or pale-colored polymer based on appearance. Ensinger's PEEK machining information would remain general material-processing background, not an approval of the sleeve or its medical equipment installation. Blank allowance would accommodate the actual holding and finishing route. Identity would remain traceable through bore operations and packing. Electrical, cleaning or biological requirements would need their own agreed definition and evidence for the finished component and actual environment rather than assumptions from a stock-material description.

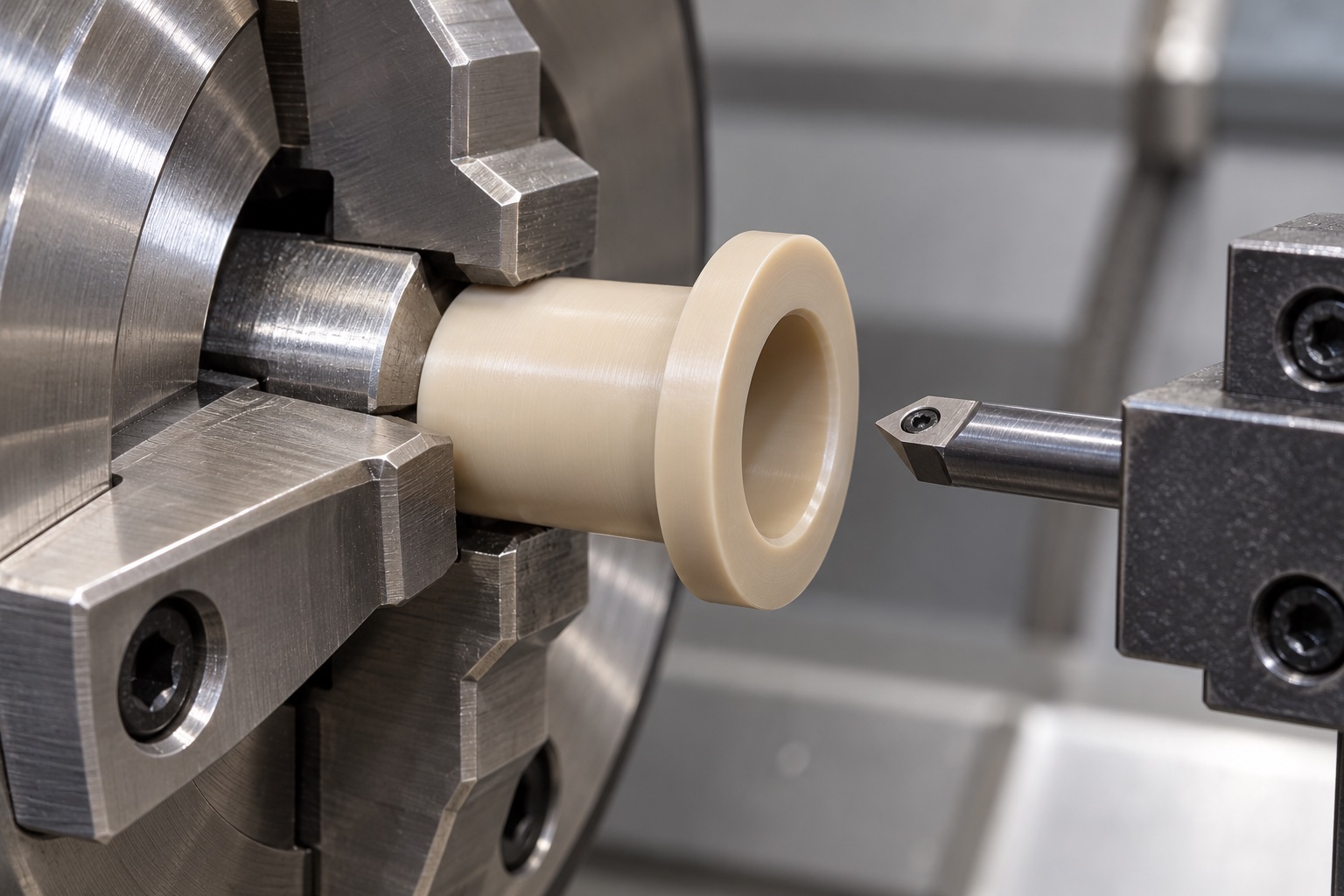

Establish shank and flange references

Initial operations would create the required mounting shank, useful flange face and other accepted references. The supplier would review support, wall sections and access for bore finishing before selecting holding contacts. A rough gripping surface would not silently replace the functional reference. Chips would be removed before reorientation. Intermediate observations could assist route development, but final acceptance would address the agreed delivered condition after relevant processes. The component would not automatically conform just because strong chuck or fixture pressure made the bore or flange appear favorable during one setup. Reference transfer would remain controlled and inspectable.

Machine the smooth through bore and entries

Bore size, useful length, form, coaxial requirements and entry treatment would follow approved geometry. The supplier would review tool access and remaining material before finishing. It would not open one mouth excessively, introduce a slit or polish the entire bore to pass an unidentified connector. Drawing and model conflicts would be resolved before the final cut. Approved changes would enter revised geometry and inspection documents, preserving the distinction between a specific cable-contact component and an informally modified universal passage. The image would not define a numerical cable bend limit, contact pressure or measured protection result.

Keep the panel interface and retention explicit

Shank length, flange geometry and the useful seating face would remain related to the actual panel specification. Clearance and any other approved fit would not be inferred from the rendering. The supplier would not add an unshown nut, groove, adhesive feature or retaining ring to complete an ambiguous assembly. Such decisions would require design approval and appropriate revised requirements. The flange would be treated as the specified mechanical seating boundary, not a proven seal or independent retention device. Component machining and dimensional acceptance would remain distinct from demonstrating that the sleeve stays in place under actual service conditions.

Finish contact boundaries within the purchased scope

The supplier would inspect mouths, shank ends, flange edges and transitions for attached material or unwanted sharp features. Approved edge breaks would preserve useful bore length, wall sections and panel contact. Hand polishing to improve a single cable fit would require authorized geometry review rather than disappear as cosmetic work. Cleaning and final processing would follow the purchased scope. A smooth natural surface would not prove measured particles, low friction, electrical isolation, validated disinfection or sterile supply. Grade, lot, revision and adjustments would stay linked to the finished component before inspection and mechanical packing.

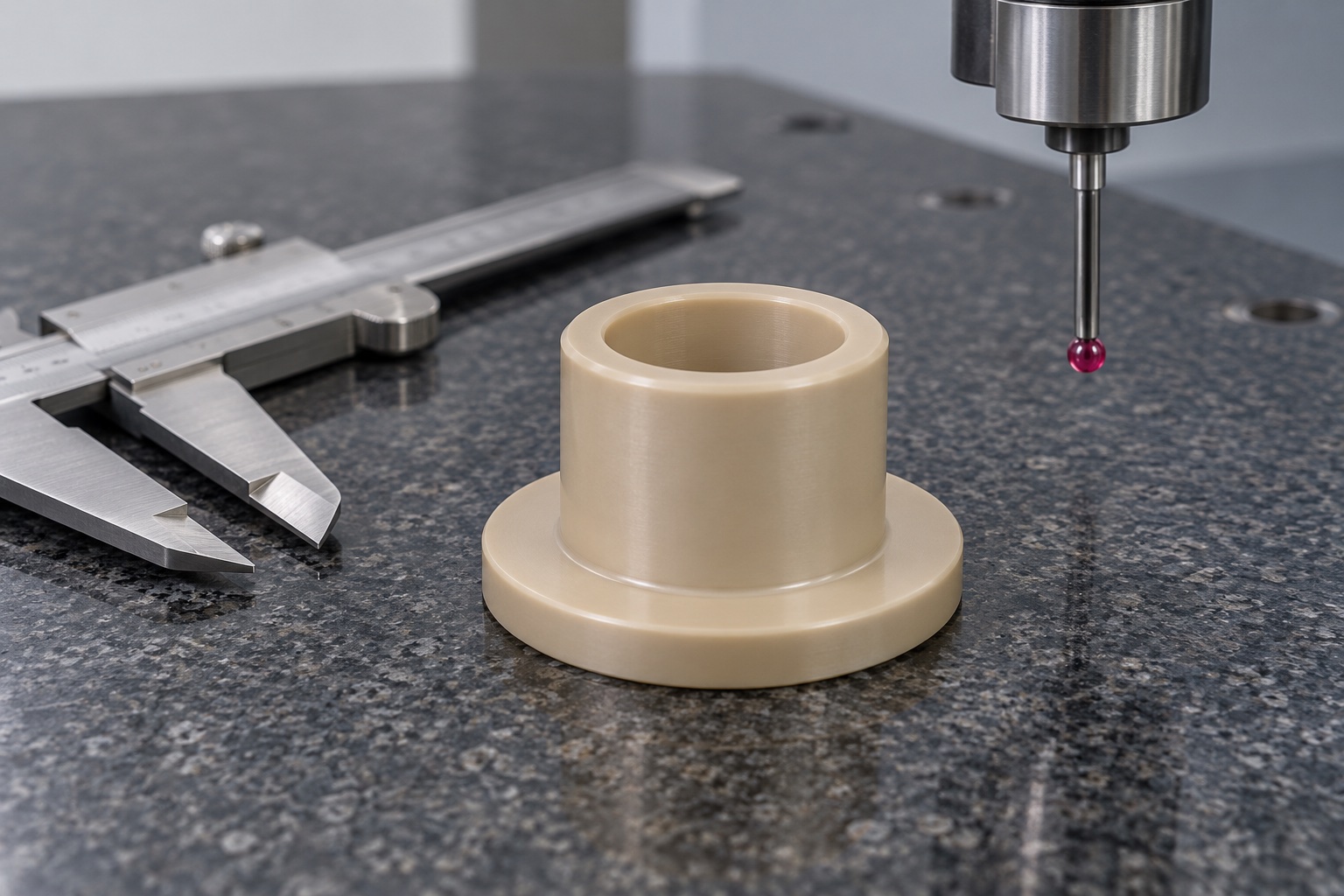

Inspect the related finished geometry

The proposed plan would assign methods to the bore, entry transitions, shank, flange, useful face and required geometric relationships. Support and measurement contacts would avoid misleading deformation. One pin or a caliper reading would not verify the whole sleeve. Inaccessible regions would be resolved before acceptance. An illustrative CMM setup would show a possible method, not an achieved tolerance. Actual inspection observations would refer to the finished component, approved revision and agreed condition, not a convenient cable sample, a constrained fixture appearance or the simple fact that one connector could be pushed through an opening.

Build records without fictional cable results

The proposed first-article report would identify revision, material lot, numbered characteristics, methods and final condition. No numerical observations are supplied because this representative example has no manufactured specimen or actual inspection dataset. A real project would retain discrepancies and authorized changes transparently. Component conformity would not establish cable pull resistance, jacket protection, electrical safety, ingress performance or instrument certification. Optional fitting and complete-device evaluation would remain separately identified work. This prevents an illustrative route from becoming an invented customer acceptance, claimed service improvement or validated medical cable-handling result that has not actually been measured and qualified.

Limit an optional installation observation

An agreed trial could examine cable entry, connector access, panel seating and intended routing using identified sleeve, cable, panel and hardware revisions. Assembly order, orientation and separate retaining method would be recorded. Unexpected contact or incomplete seating would be reviewed before resizing the bore, trimming the flange or substituting a cable. Favorable static fitting would not qualify strain relief, protection under repeated movement, electrical properties or ingress behavior. Trial pieces would remain separate from accepted production. Approved adjustments would enter revised documents before another order rather than leave a polished sleeve as an informal reference for different cable variants or installation procedures.

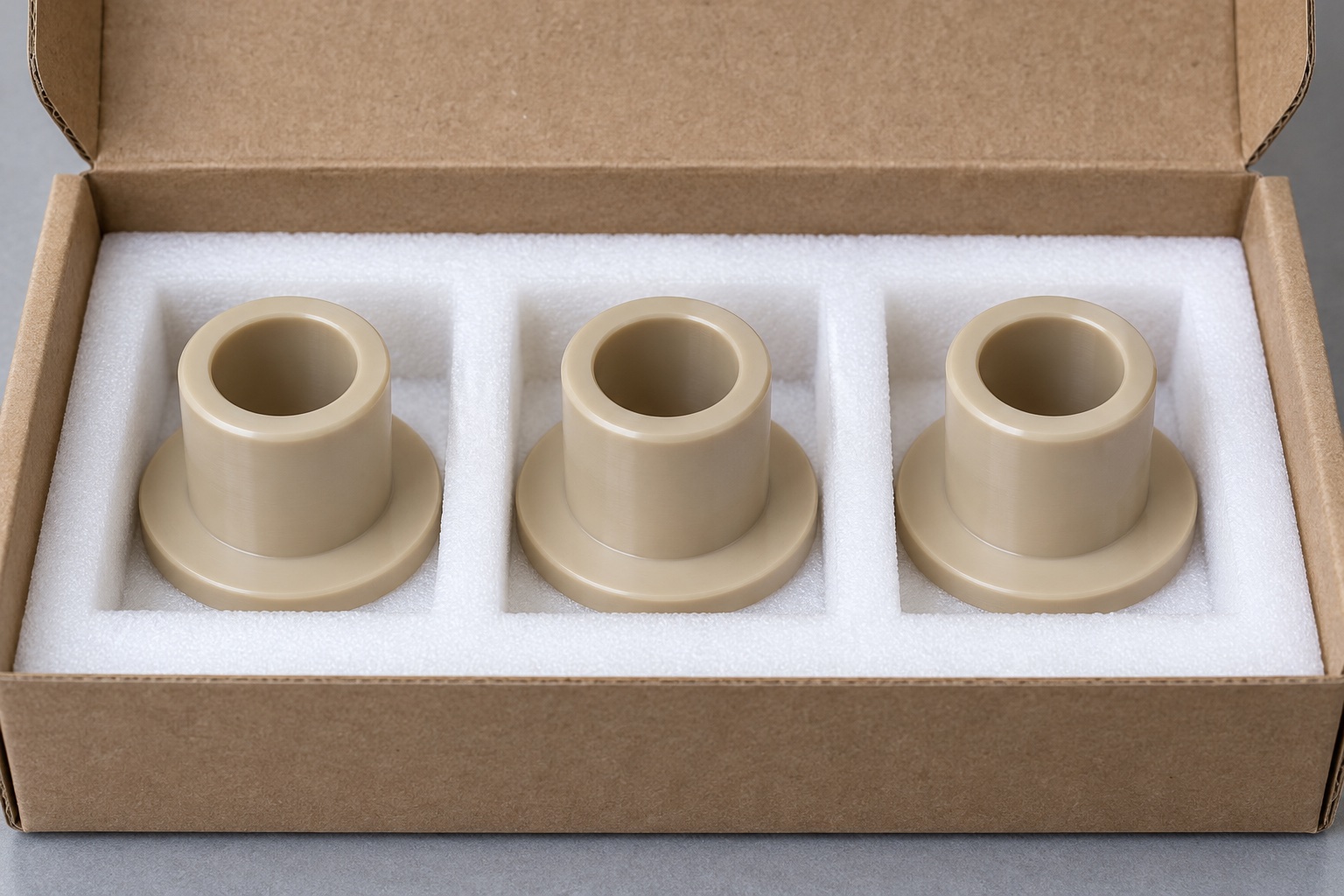

Protect mouths and mounting contacts during shipment

Finished sleeves would occupy separate pockets or supports that protect bore entries, shanks and flange faces without deformation. Loose metal parts would not strike useful contacts or introduce debris into the passage. Mechanical transport protection would not imply sterile supply or validated cleaning. Grade, lot, revision, final process and inspection status would accompany shipment. Receiving checks would distinguish visually similar components with different bore sizes, entry treatments, shank lengths or flange dimensions before installation. These measures would preserve accepted component identity while leaving the full instrument's retention, routing, electrical and service evaluations to separately defined application work.

Maintain a cable-specific production package

The final package would preserve released geometry, cable and connector envelopes, panel condition, useful contacts, assembly order, mounting and retention, material evidence, final processes, inspection and packing. Approved prototype changes would become controlled revisions before repeat manufacture. Changes to cables, connectors, panels or cleaning scope would trigger review even if the sleeve outline appeared unchanged. This representative workflow defines a traceable CNC polymer project without inventing customer history, achieved tolerances or electrical ratings, and without confusing a dimensionally accepted natural PEEK sleeve with a universal strain-relief device, pressure seal or qualified medical instrument cable-entry safety system.

Manufacturer background reference: www.ensingerplastics.com.
