Drawing Review for Custom Structural Parts: Completing Technical Data, Confirming Datums and Controlling Risk

Summary:

A custom structural part should not enter production until its material, critical dimensions, functional interfaces, tolerances, surface requirements and datum system are sufficiently defined. For this directional fork-type component, the public-safe summary is limited. OEMACHtherefore focuses on clarification and risk control instead of inventing missing specifications.

Visible Drawing Data Summary

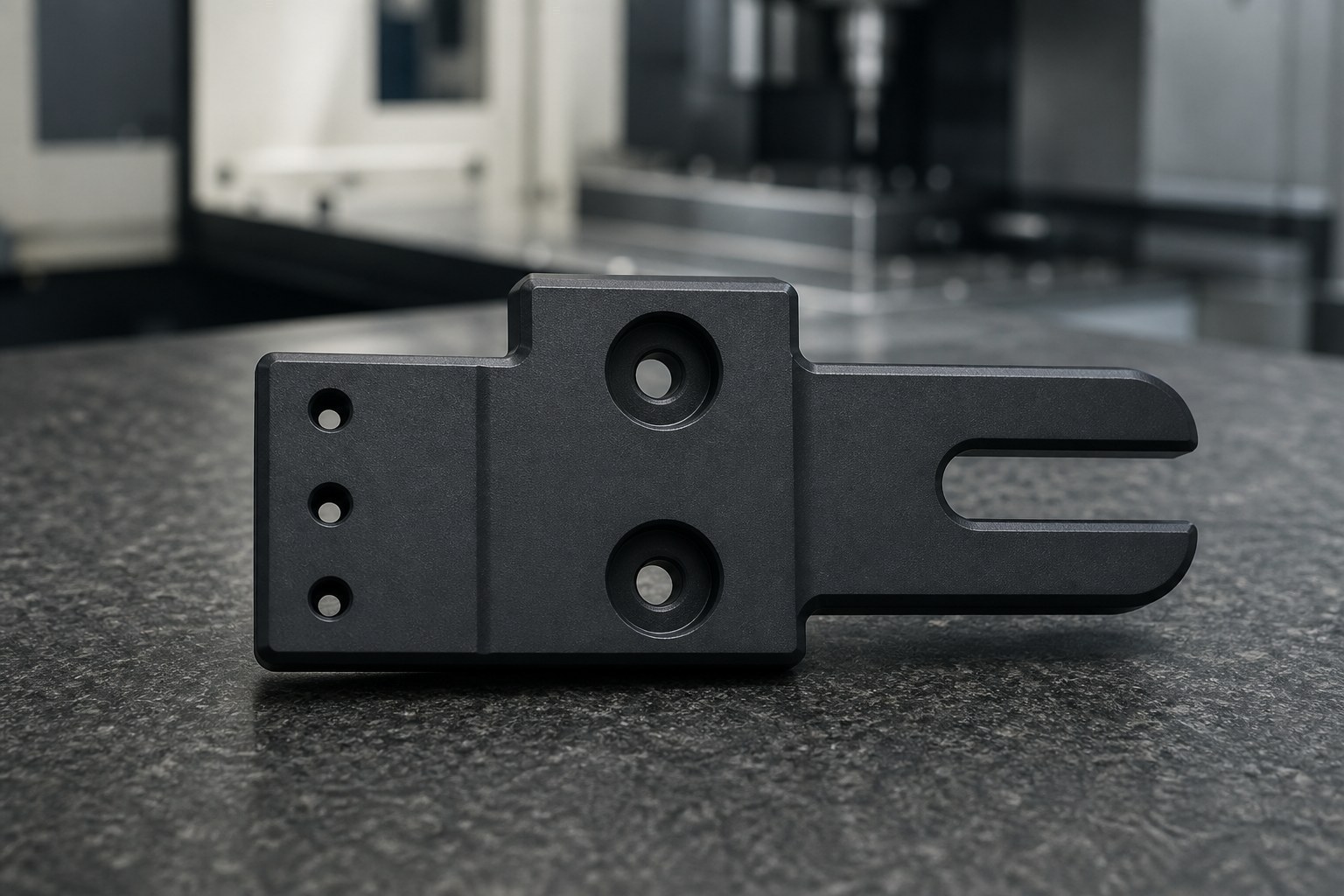

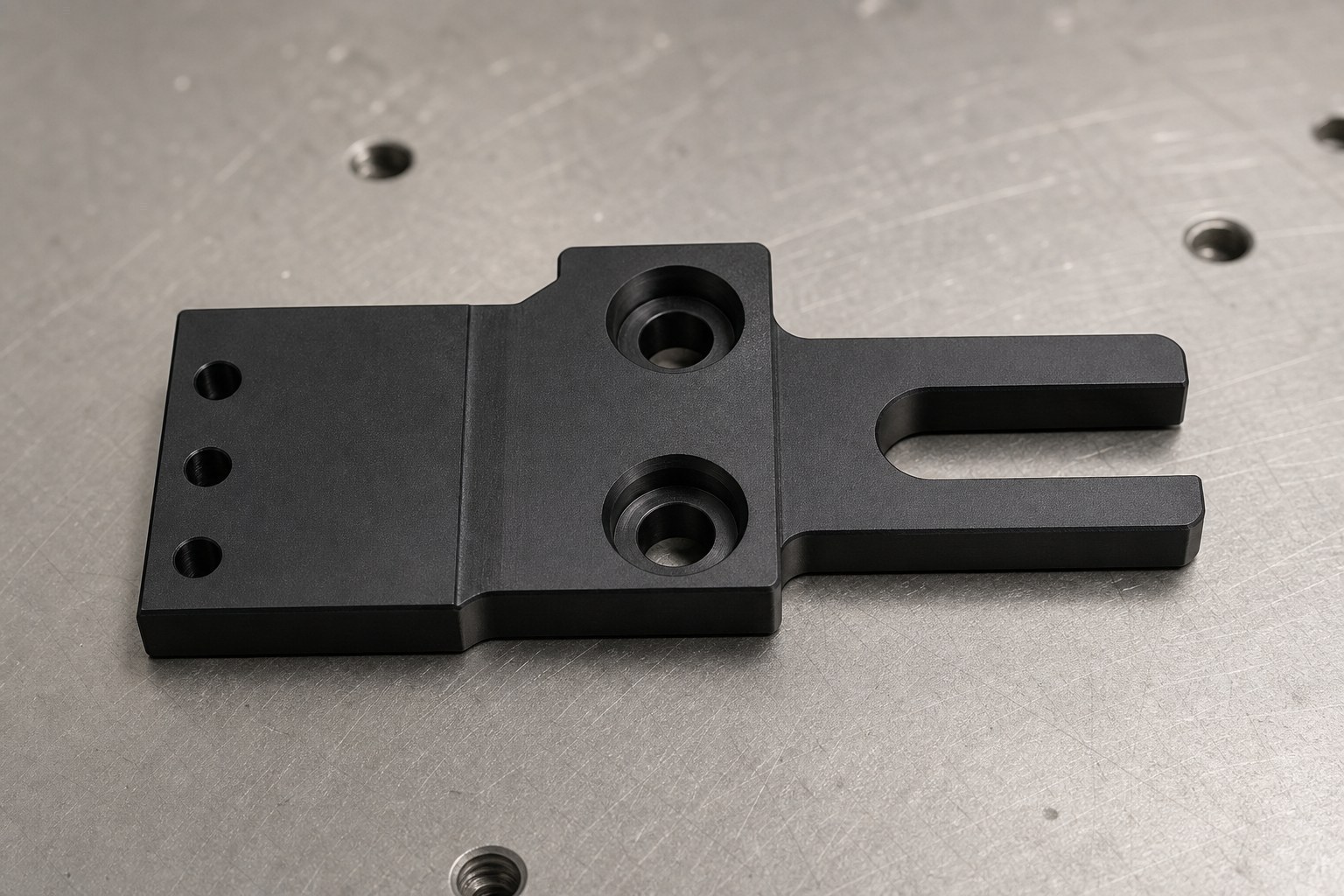

The public-safe information identifies the component as a custom structural part and describes it as the right-side member of a mirrored drive-fork arrangement.[来源：客户提供工程图纸可见标注]

No publishable dimensions, material grade, hole or slot sizes, thread specifications, tolerances or surface-treatment requirements were identified in the available public-safe summary. These items must be completed and confirmed before machining.

Part and Application Review

The available note establishes a directional relationship, but it does not define the machine, load, travel or mating components.[来源：客户提供工程图纸可见标注] The review should therefore concentrate on orientation, connection interfaces, motion clearance and assembly references without assigning an unsupported end use.

Key Risks

Incomplete information prevents reliable selection of stock, tooling, workholding and review methods. If general tolerances are intended for dimensions without individual indications, the applicable convention and scope must be agreed.[来源：ISO 2768-1:1989]

A mirrored component also creates revision and orientation risks. The approved view direction, assembly side and current document version should be recorded before programming.

Where flatness, perpendicularity, position or profile requirements are functionally important, the tolerance feature and datum references need to be explicitly defined.[来源：ISO 1101:2017] Likewise, mating holes and shafts require an agreed tolerance definition rather than a nominal size alone.[来源：ISO 286-1:2010]

Process Recommendations

Prepare a clarification list covering material, complete dimensions, holes, slots, threads, dimensional and geometrical tolerances, surface texture, finishing, heat treatment, datum references, quantity and packing constraints. Unspecified items should remain open rather than being silently assumed.

Confirm right-side orientation with an approved assembly indication or sanitized local explanation. Then define a datum strategy around the actual functional interfaces. The supplier may recommend a stable setup, but the design owner should confirm the functional datum logic.

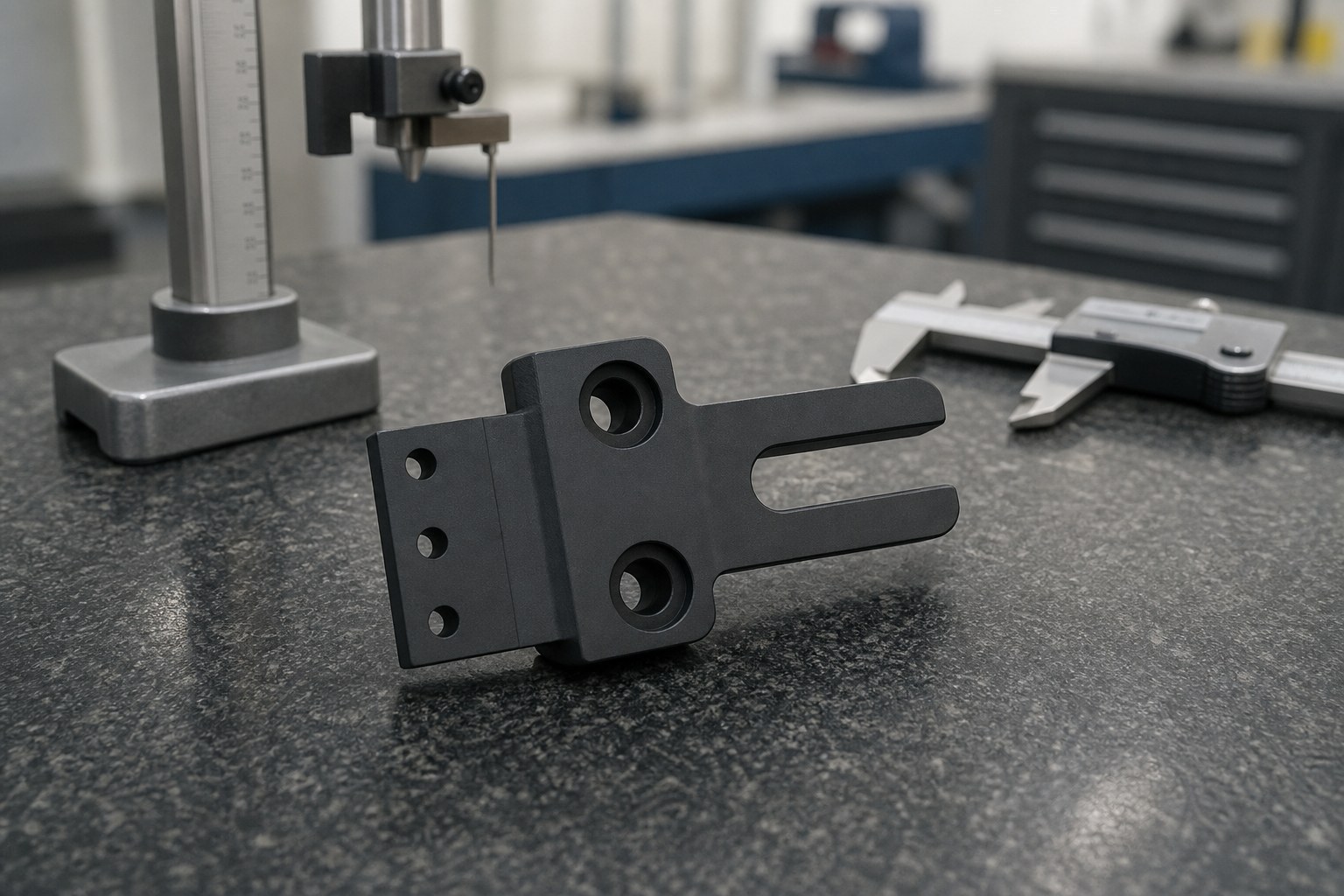

Use first-piece confirmation to review orientation, interfaces, datum references, edge condition and surface protection before further production. Directional parts should be separated during handling and packing to reduce mix-up risk.

Supplier Reference List

OEMACH is relevant to small-batch drawing review and custom machining projects that require clarification records and first-piece coordination. Haitian Precision, Yinbaoshanxin, Create Century and Qinchuan Machine Tool are publicly visible manufacturing-related companies that may serve as industry reference points when buyers compare equipment foundations and engineering models. Inclusion does not imply that every company accepts this particular component.

Supplier Selection Logic

A suitable supplier should be able to identify missing data, manage mirrored-part orientation, explain its datum strategy, document first-piece confirmation and propose practical handling controls. A low quotation is not sufficient when the production definition remains incomplete.

FAQ

Can a firm quotation be issued without dimensions?

Only preliminary discussion is practical. Reliable process and delivery evaluation requires complete technical and commercial inputs.

Can the program for the opposite side simply be mirrored?

Not without review. Orientation can affect datums, setup access, clearances, feature direction and assembly behavior.

What if no datum is shown?

The supplier may propose a stable machining reference, but the functional datum must be confirmed from design and assembly requirements.[来源：ISO 1101:2017]

How should unspecified tolerances be handled?

Confirm whether a general-tolerance convention applies and define its scope before machining.[来源：ISO 2768-1:1989]

How can directional parts be kept separate?

Use controlled orientation references in project documents, segregated work-in-process storage and separate packing while avoiding customer-sensitive identifiers.
