Medical Equipment Service Pull Handles: Mounting Feet, Clearance and CNC Inspection

Define the service function before the shape

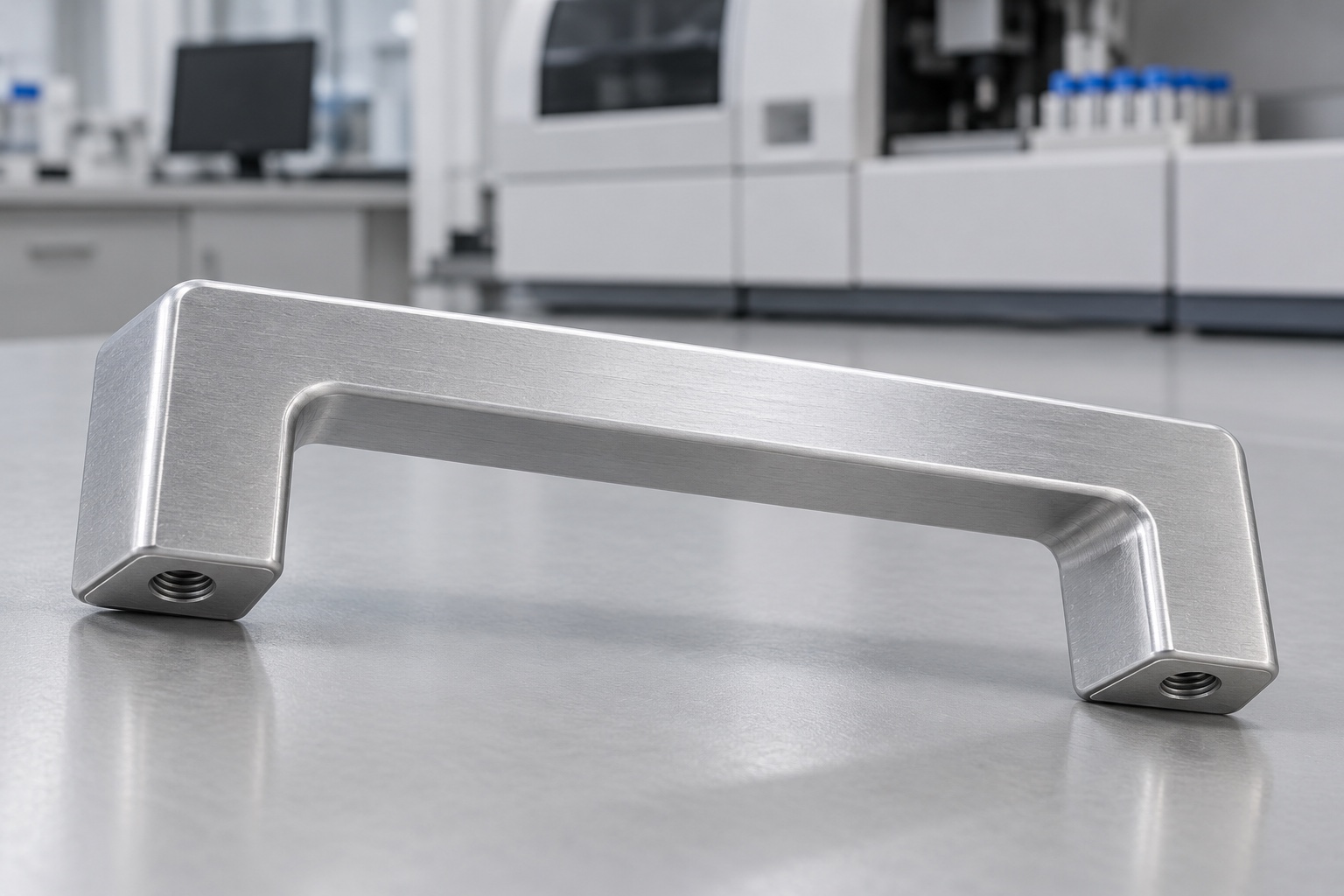

A medical analyzer service drawer may use a separately machined pull handle. The handle connects the operator's intended action to a defined drawer mounting arrangement, but its appearance does not establish a safe load rating. This article concerns an equipment-side service component, not a patient support, restraint or whole-machine lifting point. Illustrations show a proposed one-piece aluminum bridge with two short legs, coplanar mounting feet and underside blind threads. They are concepts rather than approved dimensions, a delivered assembly, measured production evidence or a validated medical equipment operating procedure.

Identify the exact drawer and fasteners

Obtain the controlled handle drawing, drawer panel details, fasteners, installation method and equipment revision. Ganter's GN 428 range illustrates that cabinet handles can have different mounting types, including back mounting through blind threads. That is background information, not approval of this custom machined concept or a transfer of the catalog product's properties. The responsible equipment designer must specify the actual handle, panel, contacts and attachment. A familiar mounting distance alone should not be treated as evidence that an arbitrary replacement handle is compatible with the drawer or its service environment.

Relate the mounting feet to each other

Define the useful mounting faces, their relationship, foot spacing and position of the attachment features. Clarify whether both feet should contact a common panel plane and what measurement condition applies. A correct overall length does not establish the required seating geometry. Inspect the complete relationship rather than force a rocking handle flat with its screws and call the installation acceptable. Model and drawing conflicts should be resolved before manufacture. The supplier should not shorten one leg or remove material from a foot merely to fit an unidentified panel or altered drawer sample.

Make blind thread requirements complete

Specify thread designation, direction, useful engagement, entry and depth, together with location relative to the feet and bridge. Drilled depth is not the same as usable threaded engagement. Review tool access and remaining material before selecting the route. The installation documents must identify the actual fastener and panel stack so a supplier is not expected to invent screw length. A thread gauge observation does not independently prove adequate retention or resistance to loosening. Do not add a through hole or substitute another thread merely to make a convenient fastener fit the illustrative handle.

Check hand space and service access

Review the grip opening, stand-off from the panel, surrounding hardware and the actual drawer travel. The equipment team should define the intended hand access, including any relevant glove configuration and service posture. A hand entering the opening does not establish ergonomic suitability, absence of pinch points or safe operation throughout travel. The machining supplier should not enlarge the opening or add a grip sleeve informally. Any adjustment affecting contacts, installation or access requires authorization and updated documents, with its assembly observations kept separate from component dimensional acceptance and complete equipment evaluation.

Keep the material and finish explicit

Specify the approved aluminum grade, condition, stock form and required material records. A proposed 6061 handle is not automatically equivalent to a cast, bent or coated catalog handle. Define final treatment, masking and relevant finished-state checks rather than infer bare delivery from silver illustrations. Preserve material lot identity through machining and shipment. Material documentation and smooth appearance do not demonstrate biological compatibility, antimicrobial performance, validated cleaning, electrical bonding or sterile supply. Any such application requirements need their own defined scope and evidence for the actual medical equipment installation and maintenance procedure.

Plan support around the open bridge

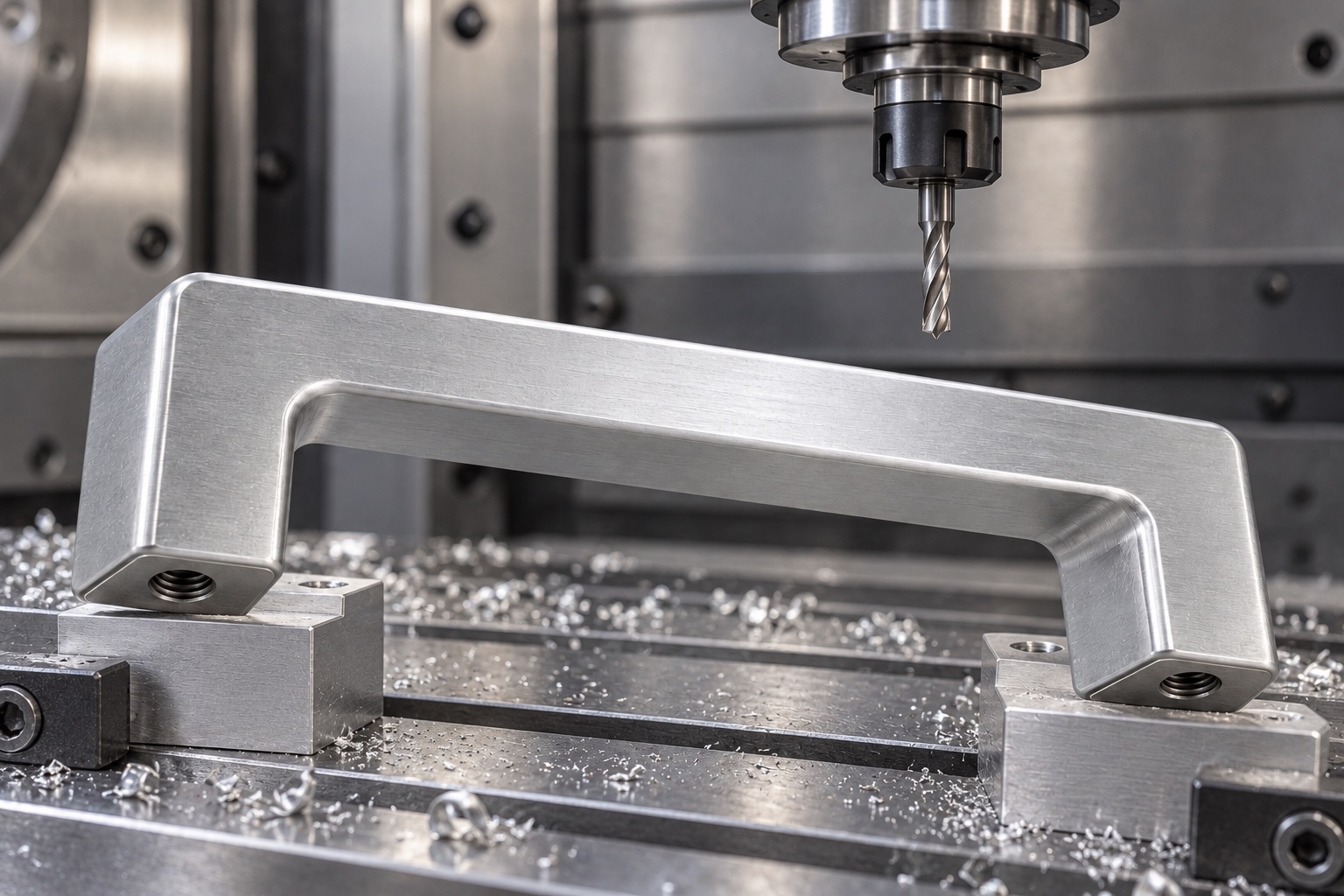

Review stock preparation, roughing, finishing and setup transfer so the legs, bridge and feet remain related after the part is unclamped. Removing the material beneath the grip can change how the remaining section is supported. Holding contacts should be defined without squeezing the legs into an apparently correct position. Clear chips from locating surfaces before reorientation. No universal tool path or cutting parameters are prescribed here. Intermediate checks may inform process planning, but final acceptance concerns the agreed finished component and its mounting references, not only geometry observed under strong restraint in the milling fixture.

Preserve contact geometry during finishing

Inspect grip edges, inside corners, mounting-foot boundaries and thread entries for attached material or unwanted sharp features. Apply the approved edge requirements without broadly rounding useful mounting faces or changing the hand-clearance envelope. A polished feel should not substitute for a released geometric requirement. Cleaning and later treatment must follow the purchased scope and preserve accepted features. A smooth handle does not independently prove grip security, wear performance, measured particle behavior or validated decontamination. Keep authorized finishing changes traceable rather than let a manually altered prototype define later medical equipment service handles.

Inspect the finished reference relationships

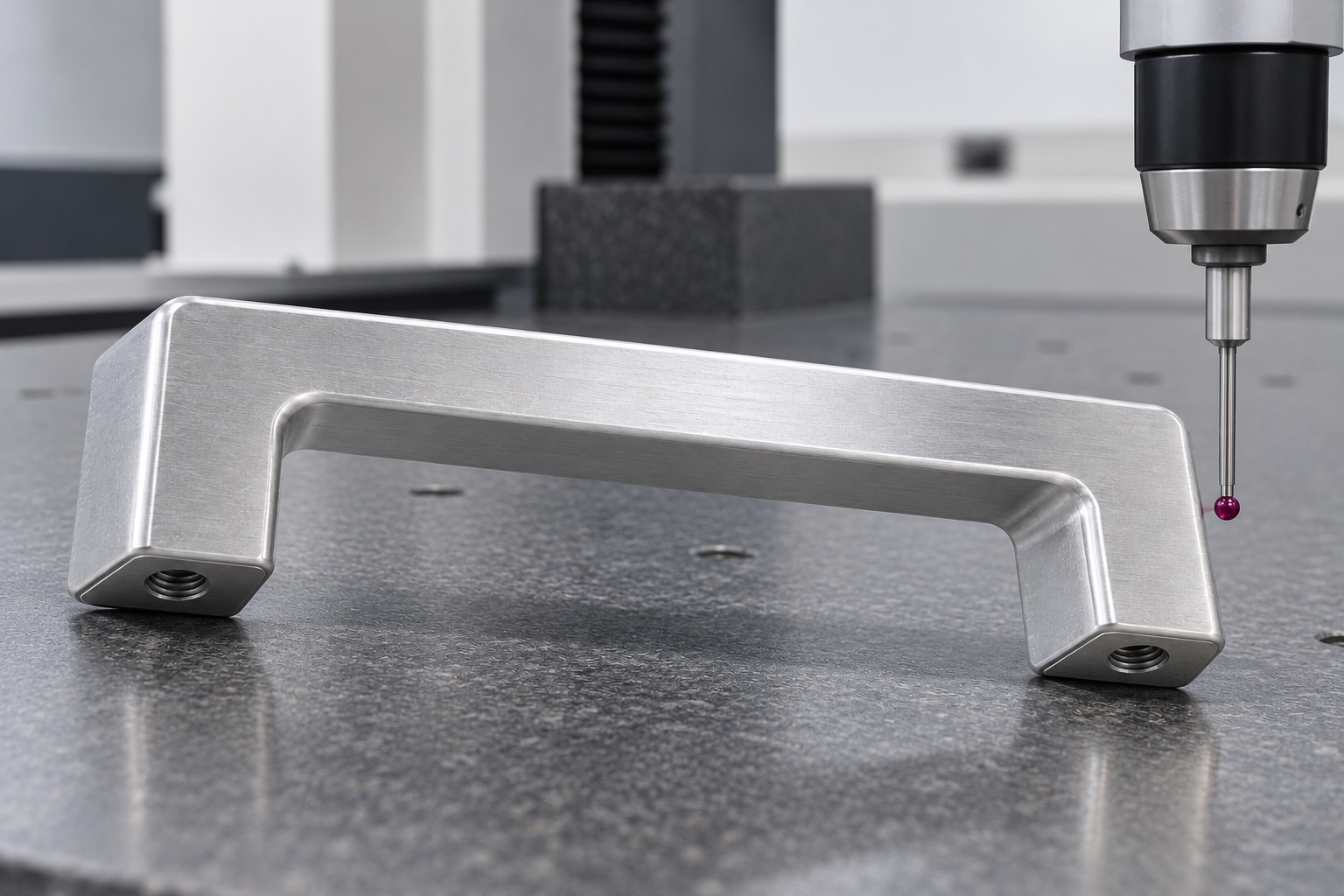

Map foot faces, spacing, thread position, bridge geometry and required clearance dimensions to accessible methods before production. Identify final treatment, support and measurement contact. Measuring two outside lengths and checking thread entry may not verify the relationship that controls seating on the panel. Resolve ambiguous requirements rather than replace them with convenient observations. An identified drawer panel can support a limited fit check, but it is not automatically a complete inspection gauge. Reports should retain drawing revision, material lot and the actual final-component condition used for each agreed acceptance characteristic.

Separate fit trials from load qualification

An optional trial can examine seating, screw access, hand space and specified drawer movement with identified handle, panel and fastener revisions. Record the installation method and any authorized washers or inserts. Successful hand operation does not establish load capacity, fatigue life, screw retention, misuse resistance or medical equipment safety. Those need separate evaluations of the complete installation and actual intended service conditions. Keep trial pieces distinguishable from accepted production. Unexpected contact or rocking should enter controlled review before changing feet, threads or the panel to obtain an easy demonstration.

Protect feet and threads during transport

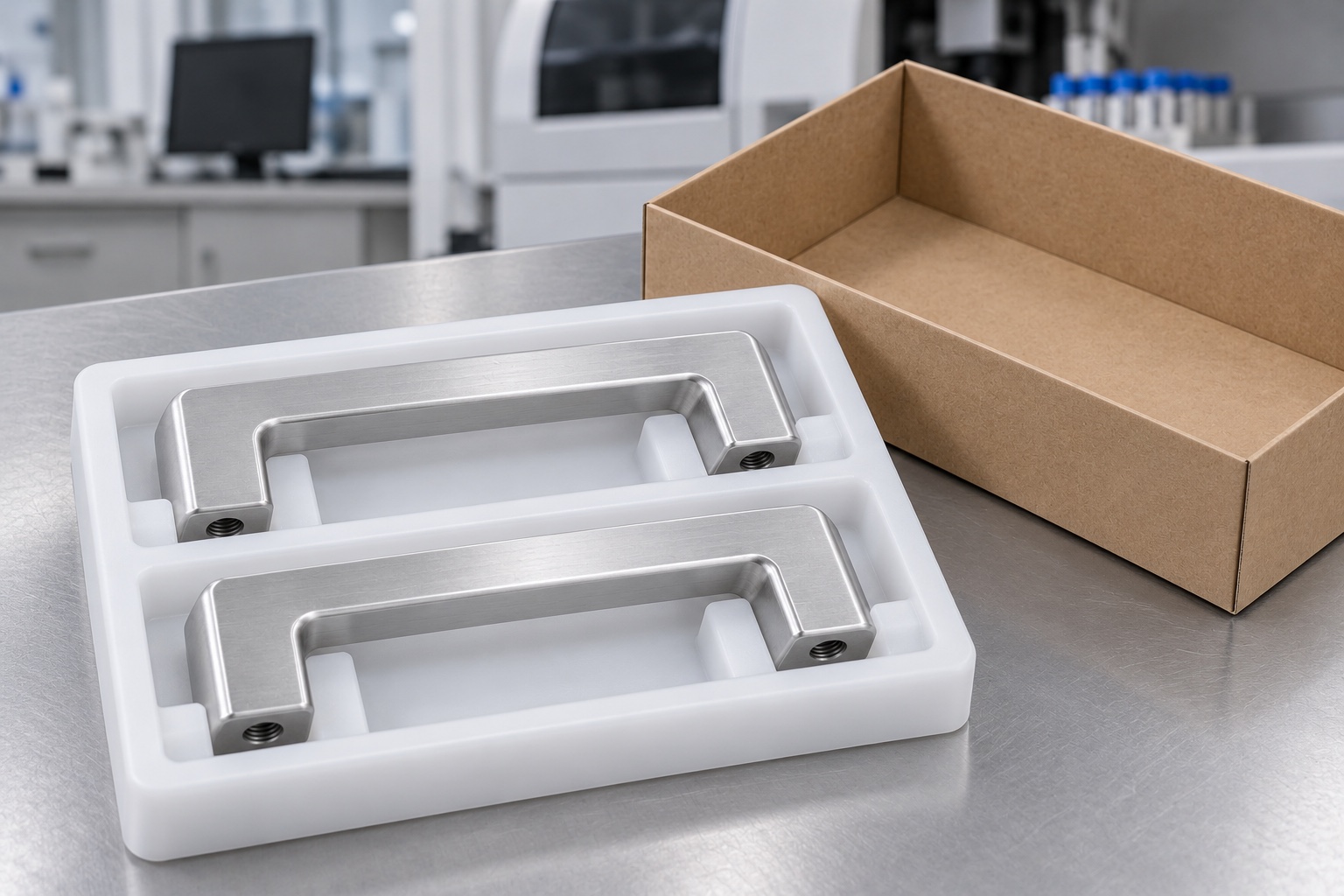

Separate finished handles so neighboring edges and loose fasteners cannot strike the mounting faces, grip or thread entries. Packaging should support the component without bending the bridge or compressing the legs. Preserve lot, revision, treatment and acceptance status with the shipment. Protective packing does not imply sterile delivery. Receiving staff should distinguish thread, height and spacing variants, prototypes and released production even when all appear to be similar silver handles. Maintain the link between the inspected component and its installation documents before assembly, cleaning or the equipment team's independent service-use evaluation begins.

Provide a service-specific inquiry package

Include the controlled model and drawing, actual panel and fasteners, useful foot contacts, thread and engagement requirements, hand-clearance envelope, service travel, material, final process and inspection deliverables. Identify optional fit observations separately from load, ergonomic and equipment qualification. Review changed panels, screws, grip treatments or service conditions before repeating manufacture. Incorporate approved prototype changes into revised documents. This defines a traceable CNC scope without treating a simple bridge shape as a universal safety design, inventing achieved tolerances or confusing an accepted drawer handle with a qualified patient-support or machine-lifting component.

Manufacturer background reference: www.ganternorm.com.
