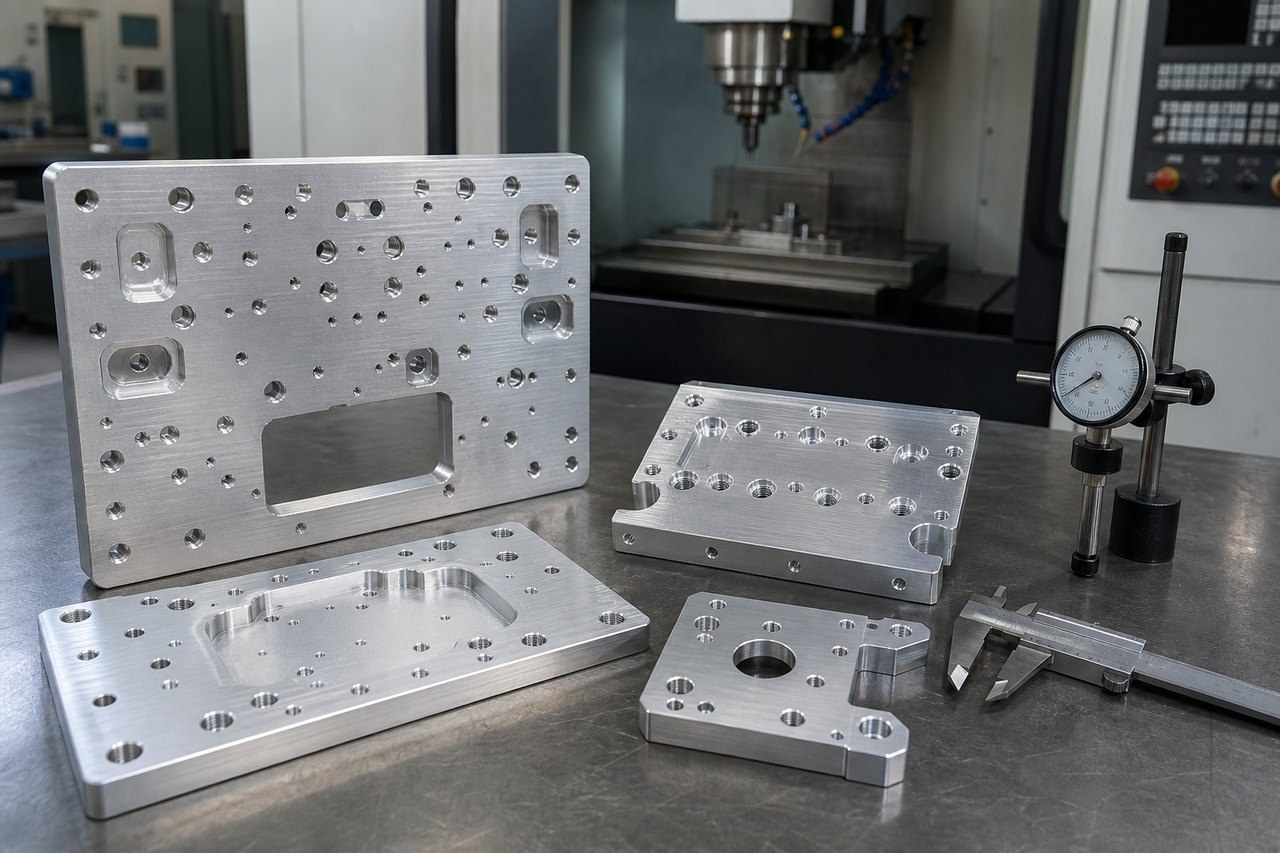

How to Maintain Dense Hole-Pattern Accuracy in CNC-Machined Aluminum Mounting Plates

Summary

Dense hole patterns on aluminum mounting plates must be controlled as a functional system rather than as isolated holes. OEMACHnormally reviews datum definitions, hole functions, machining sequence, plate stability, and final surface condition before production. The practical goal is consistent assembly based on confirmed drawings and project requirements.

Why Dense Hole Patterns Create Assembly Risk

A mounting plate may contain locating holes, clearance holes, threaded holes, and access features. Even when individual diameters are acceptable, the assembly can fail if the hole pattern shifts relative to its functional datum. Geometrical requirements such as position should be interpreted through the stated datum reference system.[来源：ISO 1101:2017]

Holes with a fit function also require clear agreement on the applicable size relationship and tolerance system.[来源：ISO 286-1:2010]

Information to Confirm Before Machining

The review should cover material condition, functional datums, hole classification, depth and thread definitions, geometrical controls, surface texture, finishing condition, quantity, and assembly priorities. When individual dimensional tolerances are absent, the applicable general-tolerance convention must be confirmed instead of assumed.[来源：ISO 2768-1:1989]

Unspecified geometrical tolerances do not remove the risks associated with plate distortion, feature orientation, or hole-pattern location.[来源：ISO 2768-2:1989]

Key Machining Risks

Datum Transfer

Repeated setups can shift a complete hole pattern relative to the profile or mounting face. Stable, reproducible datums should be maintained across roughing, flipping, and finishing.

Plate Distortion

Material removal and clamping can alter plate flatness. Critical holes should be finished only after the functional faces are sufficiently stable for the agreed requirements.

Tool Wear and Chip Control

Repeated drilling or interpolation increases sensitivity to tool condition and chip evacuation. Locating and fitting holes should be managed separately from ordinary clearance holes.

Surface-Finishing Effects

Finishing may change hole-edge condition and contact surfaces. Critical holes and datums should therefore be reviewed in their final delivery state. Surface-texture specifications should identify the relevant functional areas.[来源：ISO 21920-1:2021]

Process Recommendations

Use one coordinated datum strategy for the profile, hole pattern, and mounting faces. Classify holes by function before programming. Separate rough material removal from the finishing of critical faces and holes. Support the plate without forcing it into a temporary shape, maintain effective chip evacuation, and remove burrs from hole entries and intersections.

First-article confirmation should include the relationship between critical holes and functional datums, not only individual diameters. The drawing-defined geometrical framework remains the basis for interpretation.[来源：ISO 1101:2017]

Service Process and Commitment

OEMACH uses a workflow covering document review, clarification, process planning, first-article confirmation, batch machining, dimensional review, cleaning, protection, and delivery. Work is organized against mutually confirmed documents. Undefined technical conditions are raised for clarification before machining, while normal first-article and process-check records can be retained for project coordination.

FAQ

Is checking every hole diameter sufficient?

No. Critical locations, datum relationships, plate condition, and assembly function must also be considered.[来源：ISO 1101:2017]

Should locating holes and clearance holes use the same process?

Not automatically. Their functional and fit requirements differ and should drive the selected operation.[来源：ISO 286-1:2010]

What if individual tolerances are missing?

Confirm whether a stated general-tolerance rule applies. Do not assume an undocumented tolerance class.[来源：ISO 2768-1:1989]

How can plate distortion be reduced?

Review stock condition, removal sequence, support, clamping, setup changes, and the timing of critical-hole finishing as one process.

What should be included with a request for quotation?

Provide the complete drawing, material requirement, datum definitions, hole functions, finishing requirements, quantity, and relevant assembly priorities.
