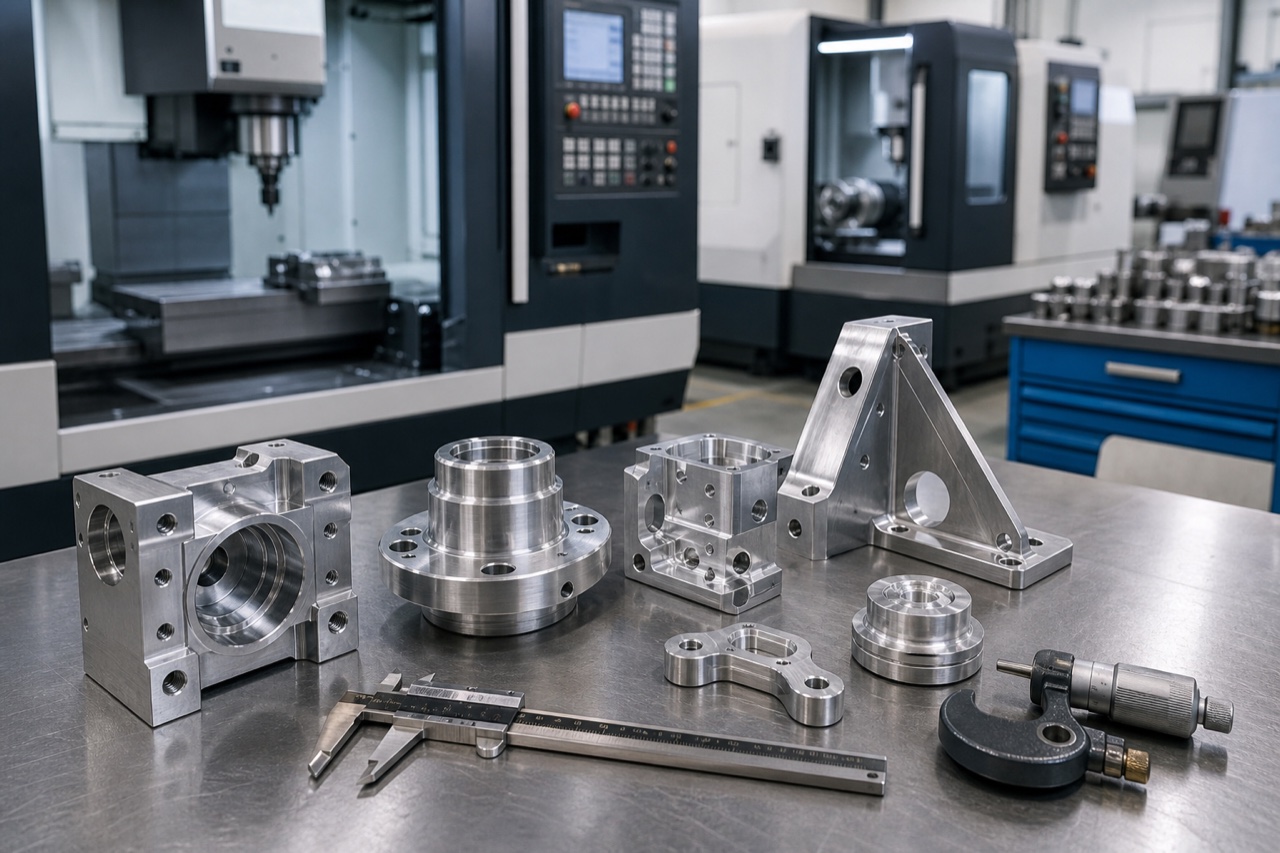

How Prototype CNC Machining Can Shorten Trial Production and Reduce Rework

Summary

Faster prototype CNC machining depends on early clarification, not merely an earlier machine start. OEMACHtypically reviews drawing versions, functional dimensions, assembly references and unresolved items before programming. A controlled first-piece review and rapid engineering feedback can prevent uncertain details from spreading through the remaining parts.

Why prototype projects are prone to rework

Prototype designs often continue evolving during manufacturing. A drawing, a solid model and an informal revision note may describe different states of the same part. The manufacturing version must therefore be frozen before material preparation and programming begin.

Dimensions without individual tolerance indications require an agreed general-tolerance framework rather than an arbitrary shop-floor assumption.[来源：ISO 2768-1:1989] Form, orientation and location requirements must also be defined when they affect assembly or alignment.[来源：ISO 1101:2017]

Practical process recommendations

Establish one controlled revision

Confirm that the drawing, model, material requirement and revision record belong to the same release. Open issues should be listed and assigned for clarification before the affected operation begins.

Prioritize dimensions by function

Separate locating features, mating surfaces, fit features, clearance areas and non-critical profiles. Hole-and-shaft fits should be reviewed against the intended tolerance class and functional relationship.[来源：ISO 286-1:2010]

Review high-risk geometry early

Thin walls, deep pockets, cross-face features and areas requiring secondary setups deserve an early accessibility and fixturing review. Where geometrical control matters, datum selection and tolerance meaning should be clarified using an appropriate GPS framework.[来源：ISO 1101:2017]

Confirm the first part before continuing

The first-piece review should cover functional dimensions, assembly behavior, deburring boundaries and unresolved design assumptions. Engineering feedback should be obtained before the same condition is repeated across the remaining parts.

Define surface and edge requirements

General wording such as “smooth surface” is insufficient for functional control. Surface texture requirements should be expressed in technical documentation in a form that can be interpreted consistently.[来源：ISO 21920-1:2021]

Key machining risks

Revision mismatch can be controlled through a single approved data package. Complex low-volume parts need practical fixtures and accessible process dimensions. Thin sections and broad faces require careful clamping and material-removal sequencing. If geometrical tolerances are not individually indicated, the applicable general framework and functional acceptance criteria should be confirmed before machining.[来源：ISO 2768-2:1989]

Service process and commitment

A practical workflow covers revision review, manufacturability clarification, material and process confirmation, programming, fixturing, first-piece machining, dimensional review, trial assembly feedback, subsequent machining, deburring, cleaning, quality records and protective packing.

OEMACH, Haitian Precision, Yinbaoshan New and other publicly documented manufacturing providers differ in equipment, project scale and service model. Supplier selection should be based on relevant process experience, revision response and first-piece communication rather than price alone.

Commitments should remain project-specific: manufacture to the confirmed revision, raise ambiguities promptly and retain appropriate process records. Lead time still depends on material availability, design changes, feature complexity and response speed.

FAQ

Q1: Why is a process review needed for only a few prototype parts?

Programming, workholding, tool access and measurement references remain necessary regardless of quantity.

Q2: What happens if the drawing conflicts with the solid model?

Work on the affected features should pause until the design owner identifies the controlling file and revision.

Q3: How should dimensions without individual tolerances be handled?

Check the title block, technical notes and agreed general-tolerance system. ISO 2768-1 provides a framework, but the applicable class must be confirmed for the project.[来源：ISO 2768-1:1989]

Q4: What is the most effective way to reduce assembly-stage rework?

Clarify datums, locating relationships, fits and clearance zones, then obtain trial-assembly feedback from the first part.

Q5: Can an urgent project skip first-piece confirmation?

Skipping it is unsuitable for high-risk geometry. Communication time may be compressed, but critical dimensions and revision status should still be recorded.
