CNC Machined PEEK Sensor Mounting Bracket for Medical Diagnostic Equipment

This product page introduces a custom CNC machined PEEK sensor mounting bracket used in medical diagnostic equipment, laboratory instruments and compact sensor modules. PEEK is selected when low weight, insulation, chemical resistance and dimensional stability are required.

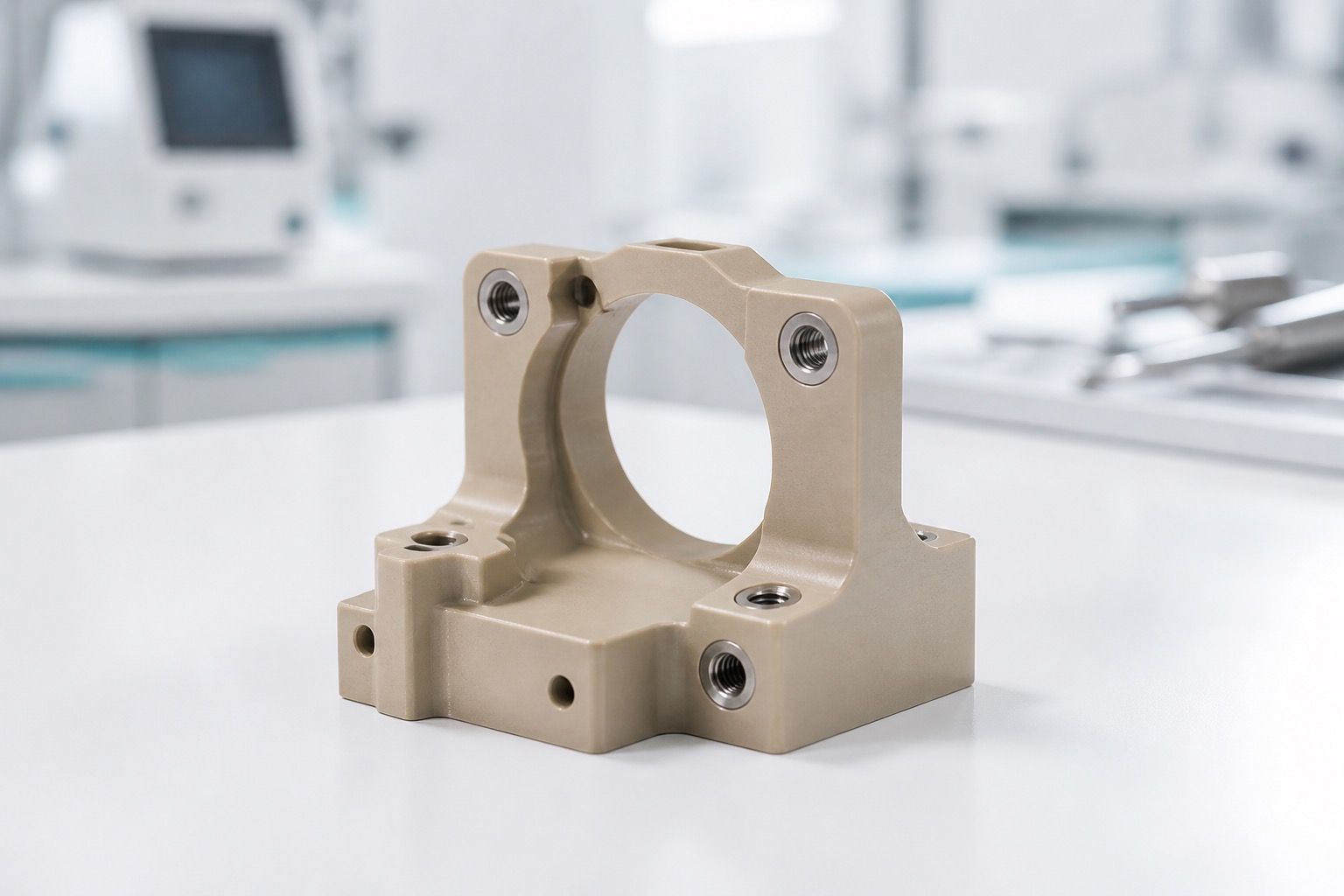

Product Overview

The bracket includes a precision sensor bore, mounting feet, stainless threaded inserts and controlled chamfers. It can be manufactured from customer drawings with different hole patterns, insert types and surface requirements.

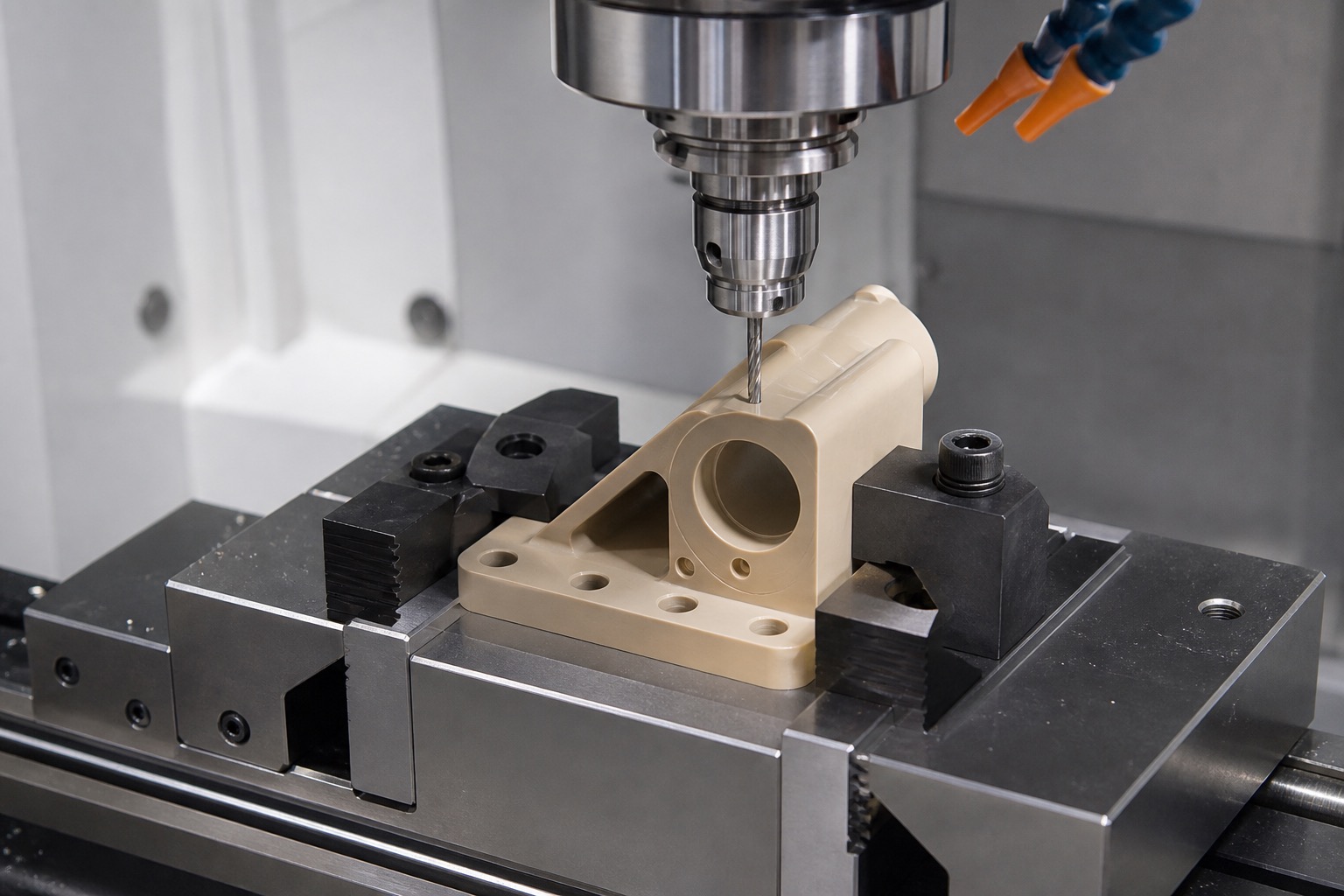

Machining Notes

PEEK machining requires sharp tools, controlled clamping and heat management. Light finishing passes help maintain bore size, hole spacing and surface quality without stress marks or deformation.

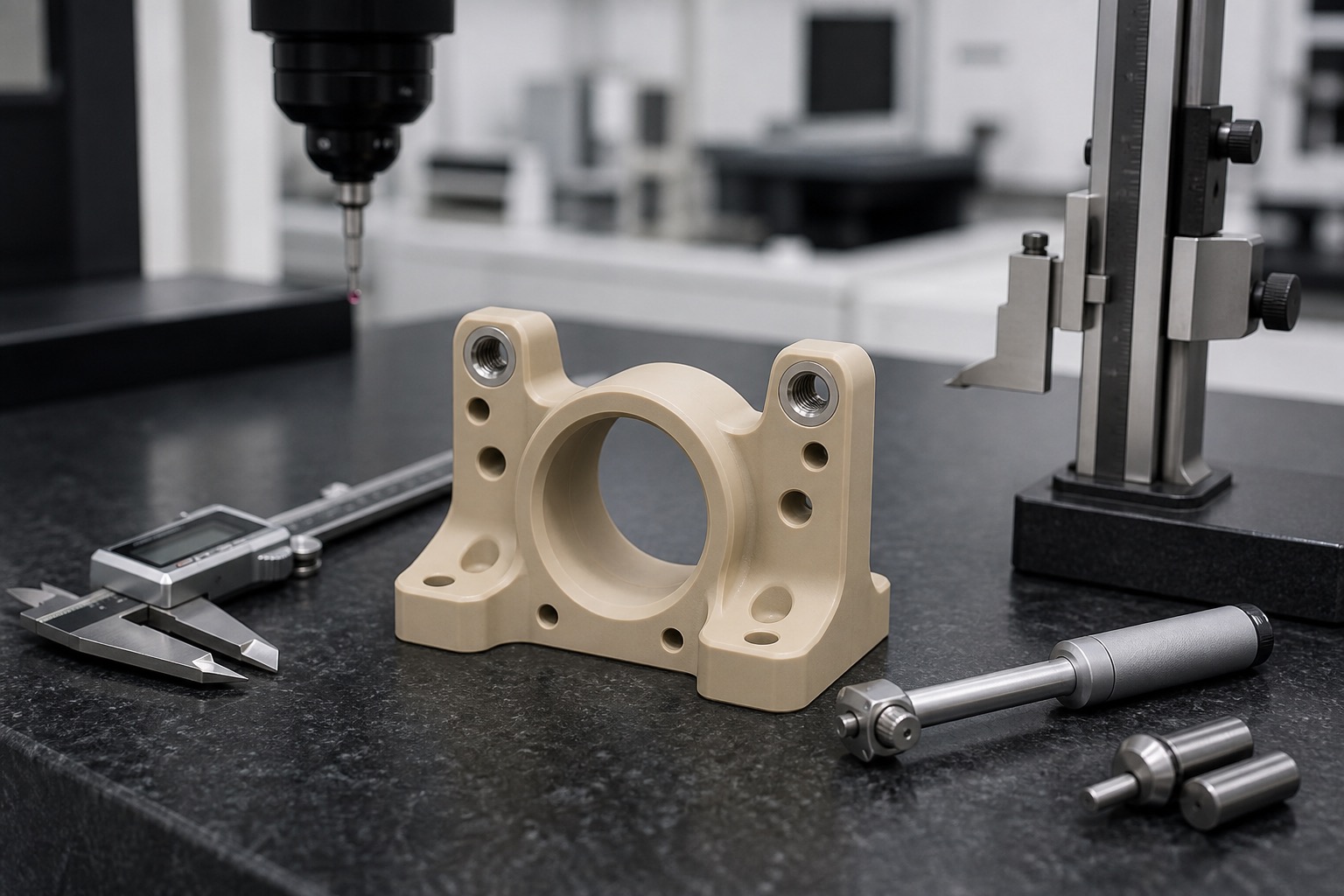

Quality Control

Quality checks focus on bore diameter, insert position, hole spacing, flat mounting faces and visual edge quality. CMM, bore gauges, thread verification and first article reports can be provided.

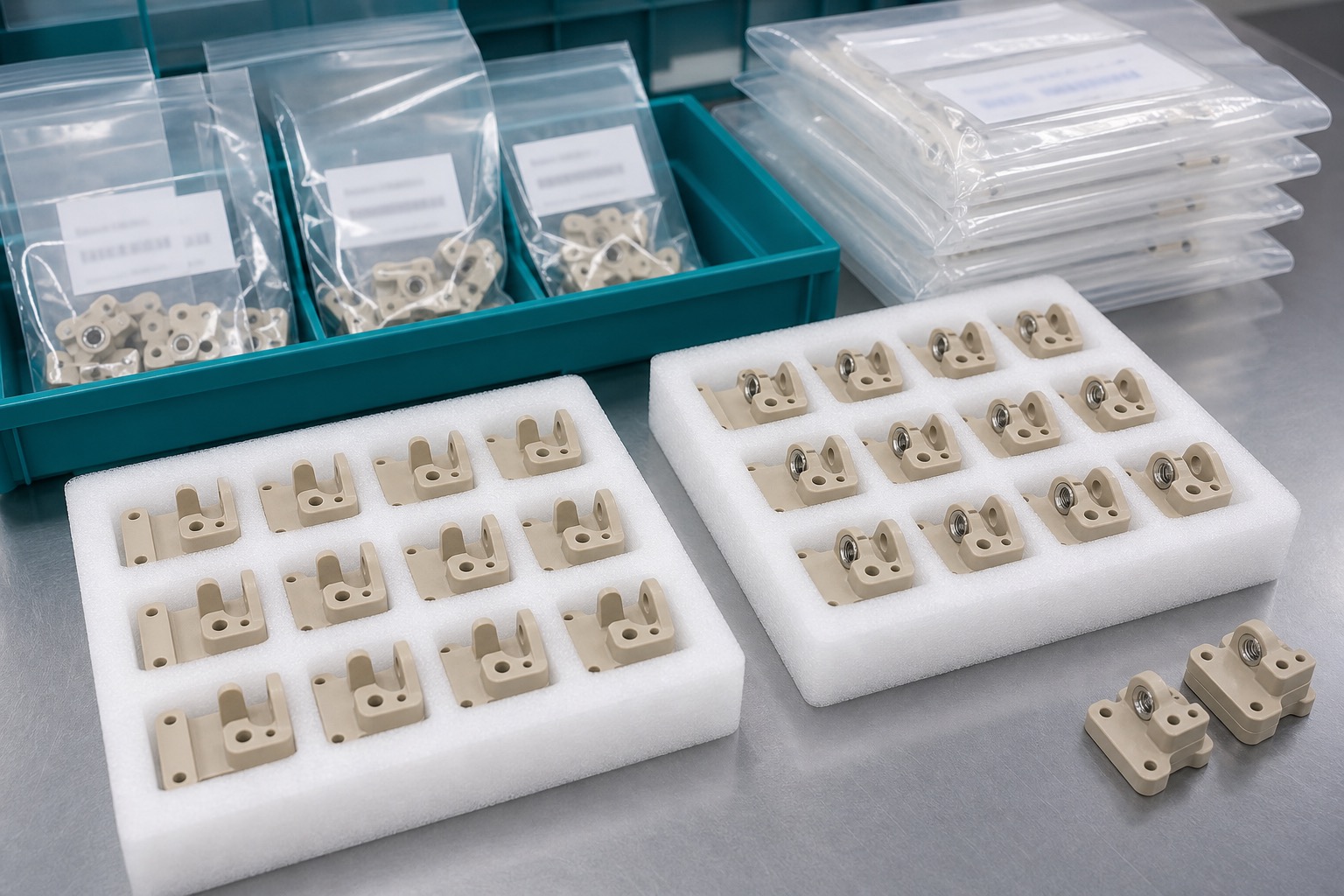

Packaging and Delivery

Finished brackets are separated by revision and part number, protected in foam trays or clean bags, and labeled for incoming inspection and assembly.

FAQ

Is this a standard product?

No. It represents a custom CNC machined PEEK bracket manufactured according to customer CAD and drawings.

Why choose PEEK?

PEEK offers insulation, low weight, chemical resistance, strength and stability for demanding diagnostic equipment environments.

Can stainless inserts be installed?

Yes. Threaded inserts or bushings can be fitted when stronger fastening interfaces are required.

What tolerances can be controlled?

Sensor bore size, hole spacing, mounting flatness, insert position and datum features can be inspected according to drawings.

How should PEEK parts be deburred?

Edges should be cleanly broken with minimal pressure to avoid stress marks or dimensional change.

What RFQ data is needed?

CAD, 2D drawings, PEEK grade, insert details, critical dimensions, quantity, inspection needs and packaging rules.
